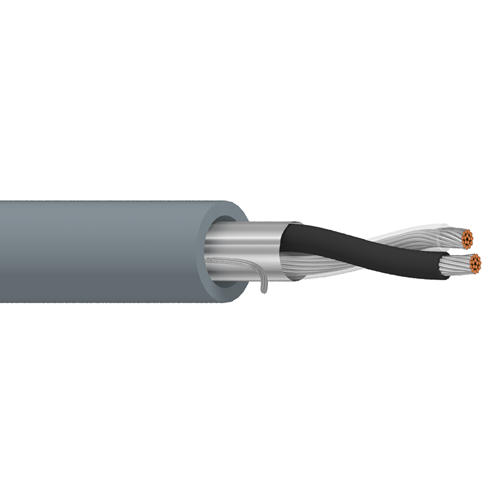

Belden 8762 20 AWG 2 Conductor 7x28 Stranding Tinned Copper 300V Electronic Cable

Description:

Electronic, 2 Conductor 20 AWG (7x28) Tinned Copper, PE Insulation, Overall Beldfoil Shield, PVC Outer Jacket, CM, Suitable for Audio, Control, and Instrumentation Applications.

Insulation:

• Material: PE - Polyethylene
• Nom. Thickness: 0.017 in (0.43 mm)
• Nom. Insulation Diameter: 0.070 in (1.8 mm)

Outer Shield:

• Shield Type: Tape
• Material: Bi-Laminate (Alum+Poly)
• Coverage: 100%
• Drainwire Type: 20 AWG (7x28) TC - Tinned Copper

Outer Jacket:

• Material: PVC - Polyvinyl Chloride
• Nom. Thickness: 0.028 in (0.71 mm)
• Nom. Diameter: 0.204 in (5.18 mm)
• Overall Cable Diameter (Nominal): 0.204 in (5.18 mm)

Standards:

• Operating Temperature: -20°C to +60°C
• Nom. Characteristic Impedance: 56 Ohms
• Voltage Rating: 300 V (CM), 300 V (UL AWM 2092))

Applications:

• low voltage analog signals (4-20ma, 0-10v, ...); low voltage digital control (24v, …); line level audio; computer communication; panel wiring

Specifications:

• Size (AWG): 20
• No. of Conductor: 2
• Stranding: 7x28
• Conductor Material: TC - Tinned Copper
• Part Number: 8762
