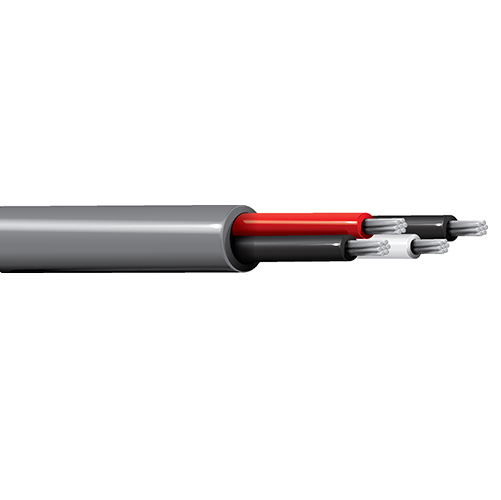

Belden 8750 22 AWG 54 Conductor 7x30 Stranding Tinned Copper 300V Electronic Cable

Belden 8750 22 AWG 54 Conductor 7x30 Stranding Tinned Copper 300V Electronic Cable

SKU: NES8750   Download PDF

Select a gauge:
  • Belden 8750 22 AWG 54 Conductor 7x30 Stranding Tinned Copper 300V Electronic Cable
Length: FT
Enter footage in the box - Cut to one length. Min 1 ft - Max 10000 ft.
Now $37.89 /FT   Web pricing policy
BEFORE   $0.00 Now $37.89 /FT Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information Resources Reviews
Product Information

Belden 8750 22 AWG 54 Conductor 7x30 Stranding Tinned Copper 300V Electronic Cable

Description:

Electronic, 27 Pair 22 AWG (7x30) Tinned Copper, PVC Insulation, PVC Outer Jacket, CMG.

Insulation:

• Material: PVC - Polyvinyl Chloride
• Nom. Thickness: 0.011 in (0.28 mm)

Outer Jacket:

• Material: PVC - Polyvinyl Chloride
• Nom. Thickness: 0.045 in (1.1 mm)
• Nom. Diameter: 0.575 in (14.6 mm)
• Overall Cable Diameter (Nominal): 0.575 in (14.6 mm)

Standards:

• Operating Temperature: -20°C to +80°C
• Voltage Rating: 300 V (CMG), 150 V (UL AWM 2576)

Applications:

• low voltage analog signals (4-20ma, 0-10v, ...); low voltage digital control (24v, …); line level audio; computer communication; panel wiring

Specifications:

• Size (AWG): 22
• No. of Conductor: 54
• Stranding: 7x30
• Conductor Material: TC - Tinned Copper
• Part Number: 8750
