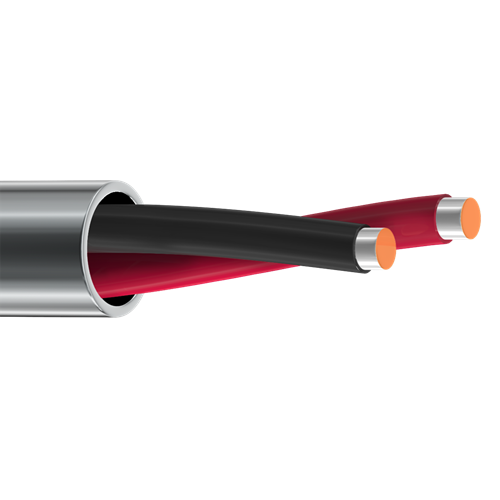

Belden 8740 22 AWG 1 Pair Solid Tinned Copper 300V Electronic Cable

Description:

Electronic, 1 Pair Conductor 22 AWG (Solid) Tinned Copper, PVC Insulation, PVC Outer Jacket, CMG.

Insulation:

• Material: PVC - Polyvinyl Chloride
• Nom. Thickness: 0.010 in (0.25 mm)
• Nom. Insulation Diameter: 0.046 in (1.2 mm)

Outer Jacket:

• Material: PVC - Polyvinyl Chloride
• Nom. Thickness: 0.032 in (0.81 mm)
• Nom. Diameter: 0.156 in (3.96 mm)
• Overall Cable Diameter (Nominal): 0.156 in (3.96 mm)

Standards:

• Operating Temperature: -20°C to +80°C
• Voltage Rating: 150 V (CMG), 150 V (UL AWM 2576)

Applications:

• telephone cables; low voltage analog signals (4-20ma, 0-10v, ...); low voltage control (24v, …); voice communications
