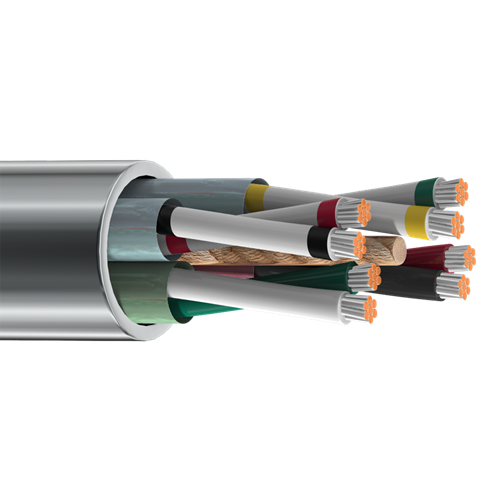

Belden 8725 20 AWG 4 Pair 7x28 Stranding Tinned Copper 400V Audio Control and Instrumentation Cable

Description:

Audio, Control and Instrumentation Cable, 4 Pair 20 AWG (7 x 28) Tinned Copper, PP Insulation, Individually Foil Shielded, PVC Jacket, CM.

Insulation:

• Material: PP - Polypropylene
• Nom. Thickness: 0.015 in (0.38 mm)
• Nom. Insulation Diameter: 0.068 in (1.7 mm)

Inner Shield:

• Shield Type: Tape
• Material: Bi-Laminate (Alum+Poly)
• Coverage: 100%
• Drainwire Type: 22 AWG (7x30) TC - Tinned Copper

Outer Jacket:

• Material: PVC - Polyvinyl Chloride
• Nom. Thickness: 0.030 in (0.76 mm)
• Nom. Diameter: 0.336 in (8.53 mm)
• Overall Cable Diameter (Nominal): 0.336 in (8.53 mm)

Standards:

• Voltage Rating: 400 V
• Operating Temperature: -40°C to +105°C
• Nom. Characteristic Impedance: 56 Ohm

Applications:

• low voltage analog signals (4-20ma, 0-10v, ...); low voltage digital control (24v, …); line level audio; computer communication; panel wiring

Specifications:

• Size (AWG): 20
• No. of Pair: 4
• Stranding: 7x28
• Conductor Material: TC - Tinned Copper
• Part Number: 8725
