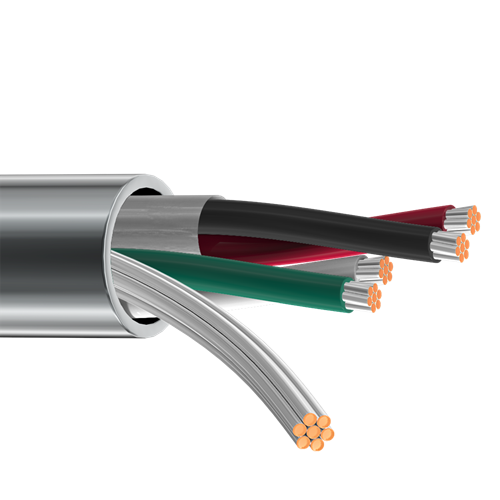

Belden 8722 20 AWG 2 Pair 7x28 Stranding Tinned Copper 300V Audio Control and Instrumentation Cable

Description:

Audio, Control and Instrumentation Cable, 2 Pair 20 AWG (7 x 28) Tinned Copper, PVC Insulation, 1 Pair (Red and Black) Beldfoil Shield, 1 Pair (Green and White) Unshielded, PVC Jacket, CMG.

Insulation:

• Material: PVC - Polyvinyl Chloride
• Nom. Thickness: 0.017 in (0.43 mm)
• Nom. Insulation Diameter: 0.070 in (1.8 mm)

Inner Shield:

• Shield Type: Tape
• Material: Bi-Laminate (Alum+Poly)
• Coverage: 100%
• Drainwire Type: 22 AWG (7x30) TC - Tinned Copper

Outer Jacket:

• Material: PVC - Polyvinyl Chloride
• Nom. Thickness: 0.028 in (0.71 mm)
• Nom. Diameter: 0.231 in (5.87 mm)
• Overall Cable Diameter (Nominal): 0.231 in (5.87 mm)

Standards:

• Voltage Rating: 300 V
• Operating Temperature: -20°C to +80°C

Applications:

• low voltage analog signals (4-20ma, 0-10v, ...); low voltage digital control (24v, …); line level audio; computer communication; panel wiring

Specifications:

• Size (AWG): 20
• No. of Pair: 2
• Stranding: 7x28
• Conductor Material: TC - Tinned Copper
• Part Number: 8722
