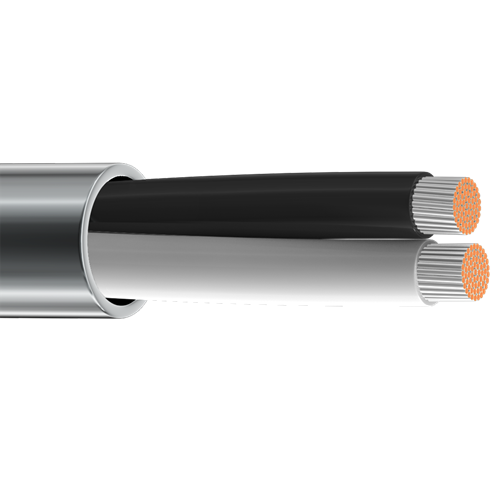

Belden 8477 12 AWG 2 Conductor 65x30 Stranding Tinned Copper 600V Electronic Cable

Description:

Electronic, 2 Conductor 12 AWG (65x30) Tinned Copper, PVC Insulation, PVC Outer Jacket, CL3R.

Insulation:

• Material: PVC - Polyvinyl Chloride
• Nom. Thickness: 0.033 in (0.84 mm)
• Nom. Insulation Diameter: 0.158 in (4.01 mm)

Outer Jacket:

• Material: PVC - Polyvinyl Chloride
• Nom. Thickness: 0.035 in (0.89 mm)
• Nom. Diameter: 0.386 in (9.80 mm)
• Overall Cable Diameter (Nominal): 0.386 in (9.80 mm)

Standards:

• Operating Temperature: -20°C to +90°C
• Voltage Rating: 600 V (CL3R), 600 V (UL AWM 2587)

Applications:

• up to 600V analog signals ; up to 600V digital control ; line level audio; voice communications; panel wiring

Specifications:

• Size (AWG): 12
• No. of Conductor: 2
• Stranding: 65x30
• Conductor Material: TC - Tinned Copper
• Part Number: 8477
