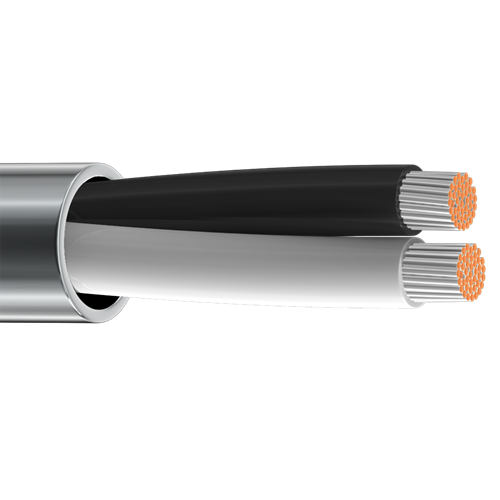

Belden 8473 14 AWG 2 Conductor 42x30 Stranding Tinned Copper 600V Electronic Cable

Description:

Portable Cordage, 2 Conductor 16 AWG (65x34) Bare Copper, EPDM Insulation, Rubber Outer Jacket, UL Type SJ.

Insulation:

• Material: PVC - Polyvinyl Chloride
• Nom. Thickness: 0.032 in (0.81 mm)
• Nom. Insulation Diameter: 0.138 in (3.51 mm)

Outer Jacket:

• Material: PVC - Polyvinyl Chloride
• Nom. Thickness: 0.040 in (1.0 mm)
• Nom. Diameter: 0.356 in (9.04 mm)
• Overall Cable Diameter (Nominal): 0.356 in (9.04 mm)

Standards:

• Operating Temperature: -20°C to +90°C
• Voltage Rating: 600 V (CL3), 600 V (UL AWM 2587)

Applications:

• up to 600V analog signals ; up to 600V digital control ; line level audio; voice communications; panel wiring

Specifications:

• Size (AWG): 14
• No. of Conductor: 2
• Stranding: 42x30
• Conductor Material: TC - Tinned Copper
• Part Number: 8473
