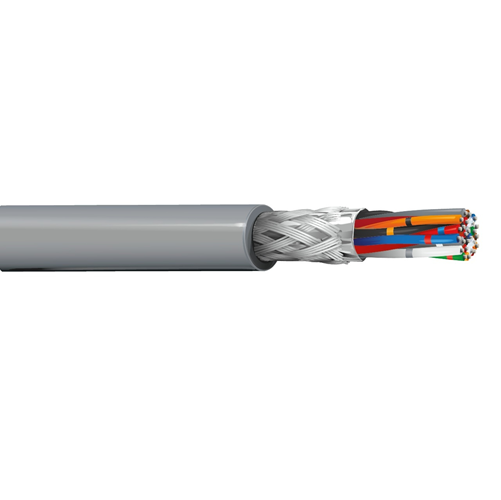

Belden 8342 Cable 24 AWG 12 Pairs Overall Foil/Braid Shield Low Capacitance Computer Cables for EIA RS-232 Applications PVC Jacket Cable
Belden 8342 Cable 24 AWG 12 Pairs Overall Foil/Braid Shield Low Capacitance Computer Cables for EIA RS-232 Applications PVC Jacket Cable
SKU: SKU:
Select a gauge:
- Belden 8342 Cable 24 AWG 12 Pairs Overall Foil/Braid Shield Low Capacitance Computer Cables for EIA RS-232 Applications PVC Jacket Cable
- Belden 8342 Cable 24 AWG 12 Pairs Overall Foil/Braid Shield Low Capacitance Computer Cables for EIA RS-232 Applications PVC Jacket Cable
Length:
FT
Enter footage in the box - Cut to one length. Min 1 ft - Max 10000 ft.
Unit price
per
Sold out
Shipping calculated at checkout.
IN STOCK Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
Couldn't load pickup availability
Product Information
Belden 8342 Cable 24 AWG 12 Pairs Overall Foil/Braid Shield Low Capacitance Computer Cables for EIA RS-232 Applications PVC Jacket Cable
Outer Jacket:
• Nom. Wall Thickness (mm): 1.016
Mechanical Charactertistics (Overall):
• Bulk Cable Weight: 100 lbs/1000 ft.
• Min. Bend Radius/Minor Axis: 4.250 in.
Applicable Specifications and Agency Compliance (Overall):
Applicable Standards and Environmental Programs:
• Other Specification: C(RU) AWM I, A 80C 300V
Electrical Characteristics (Overall):
• Nominal Outer Shield DC Resistance @ 20°C (Ohm/1000 ft): 3.6
| technical specification: | |
| awg | 24 |
| # pairs | 12 |
| stranding | 7x32 |
| no. of conductors | 25 |
| conductor material | tinned copper |
| outer shield - type | tape |
| outer shield - material | aluminum foil-polyester tape |
| overall cable- nominal dia. (mm) | 10.338 |
| belden cable part number | 8342 |
