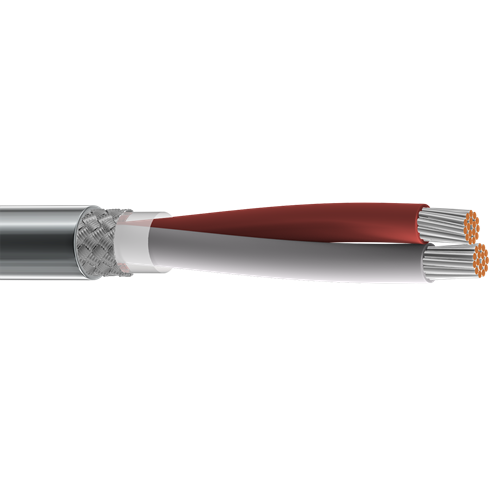

Belden 8208 18 AWG 2 Conductor 16x30 Stranding Tinned Copper 300V Electronic Cable

Description:

Electronic, 2 Conductor 18 AWG (16x30) Tinned Copper, EPDM Insulation, Overall Tinned Copper Braid (73%) Shield, PVC Outer Jacket.

Insulation:

• Material: EPDM - Ethylene Propylene Diene Monomer
• Nom. Thickness: 0.022 in (0.56 mm)
• Nom. Insulation Diameter: 0.091 in (2.3 mm)

Outer Shield:

• Shield Type: Braid
• Material: Tinned Copper (TC)
• Coverage: 73%

Outer Jacket:

• Material: PVC - Polyvinyl Chloride
• Nom. Thickness: 0.025 in (0.64 mm)
• Nom. Diameter: 0.257 in (6.53 mm)
• Overall Cable Diameter (Nominal): 0.257 in (6.53 mm)
• Separator: Polyester Tape

Standards:

• Voltage Rating: 300V
• Operating Temperature: -20°C to +80°C
• Nom. Characteristic Impedance: 44 Ohms

Applications:

• low voltage analog signals (4-20ma, 0-10v, ...); low voltage digital control (24v, …); line level audio; computer communication; panel wiring

Specifications:

• Size (AWG): 18
• No. of Conductor: 2
• Stranding: 16x30
• Conductor Material: TC - Tinned Copper
• Part Number: 8208
