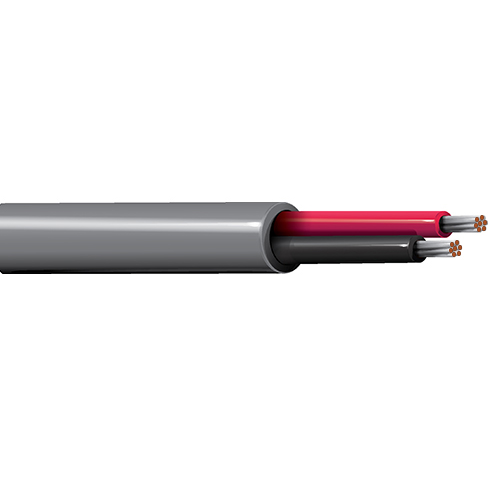

Belden 8205 20 AWG 2 Conductor 7x28 Stranding Tinned Copper 300V Electronic Cable

Description:

Electronic, 2 Conductor 20 AWG (7x28) Tinned Copper, PVC Insulation, PVC Outer Jacket, CMG.

Insulation:

• Material: PVC - Polyvinyl Chloride
• Nom. Thickness: 0.015 in (0.38 mm)
• Nom. Insulation Diameter: 0.065 in (1.7 mm)

Outer Jacket:

• Material: PVC - Polyvinyl Chloride
• Nom. Thickness: 0.025 in (0.64 mm)
• Nom. Diameter: 0.180 in (4.57 mm)
• Overall Cable Diameter (Nominal): 0.180 in (4.57 mm)

Standards:

• Voltage Rating: 300 V (CMG)
• Operating Temperature: -20°C to +60°C

Applications:

• low voltage analog signals (4-20ma, 0-10v, ...); low voltage digital control (24v, …); line level audio; computer communication; panel wiring

Specifications:

• Size (AWG): 20
• No. of Conductor: 2
• Stranding: 7x28
• Conductor Material: TC - Tinned Copper
• Part Number: 8205
