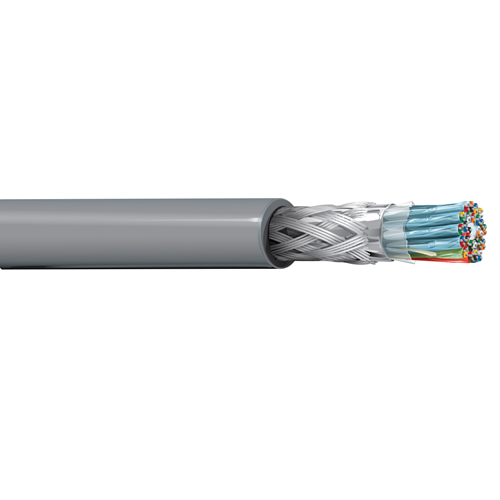

Belden 8175 24 AWG 15 Pairs Individually Shielded Low Capacitance EIA RS-232/422 and Digital Cable
Belden 8175 24 AWG 15 Pairs Individually Shielded Low Capacitance EIA RS-232/422 and Digital Cable
SKU: SKU:
Select a gauge:
- Belden 8175 24 AWG 15 Pairs Individually Shielded Low Capacitance EIA RS-232/422 and Digital Cable
- Belden 8175 24 AWG 15 Pairs Individually Shielded Low Capacitance EIA RS-232/422 and Digital Cable
Length:
FT
Enter footage in the box - Cut to one length. Min 1 ft - Max 10000 ft.
Unit price
per
Sold out
Shipping calculated at checkout.
IN STOCK Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
Couldn't load pickup availability
Product Information
Belden 8175 24 AWG 15 Pairs Individually Shielded Low Capacitance EIA RS-232/422 and Digital Cable
Outer Jacket:
• Material: PVC - Polyvinyl Chloride
• Nom. Wall Thickness (mm): 1.651
Mechanical Charactertistics (Overall):
• Bulk Cable Weight: 194 lbs/1000 ft.
• Max. Recommended Pulling Tension: 315 lbs.
• Min. Bend Radius/Minor Axis: 6.750 in.
Electrical Characteristics (Overall):
• Nominal Outer Shield DC Resistance @ 20°C (Ohm/1000 ft): 2.5
| technical specification: | |
| awg | 24 |
| # pairs | 15 |
| stranding | 7x32 |
| no. of conductors | 30 |
| conductor material | tinned copper |
| outer shield - type | tape |
| outer shield - material | aluminum foil-polyester tape |
| overall cable- nominal dia. (mm) | 16.891 |
| belden cable part number | 8175 |
