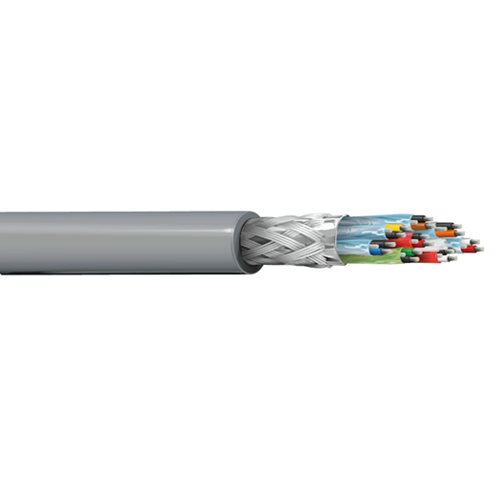

Belden 8168 24 AWG 8 Pairs Individually Shielded Low Capacitance EIA RS-232/422 and Digital Cable
Belden 8168 24 AWG 8 Pairs Individually Shielded Low Capacitance EIA RS-232/422 and Digital Cable
SKU: SKU:
Select a gauge:
- Belden 8168 24 AWG 8 Pairs Individually Shielded Low Capacitance EIA RS-232/422 and Digital Cable
- Belden 8168 24 AWG 8 Pairs Individually Shielded Low Capacitance EIA RS-232/422 and Digital Cable
Length:
FT
Enter footage in the box - Cut to one length. Min 1 ft - Max 10000 ft.
Unit price
per
Sold out
Shipping calculated at checkout.
IN STOCK Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
Couldn't load pickup availability
Product Information
Belden 8168 24 AWG 8 Pairs Individually Shielded Low Capacitance EIA RS-232/422 and Digital Cable
Mechanical Charactertistics (Overall):
• Bulk Cable Weight: 108 lbs/1000 ft.
• Max. Recommended Pulling Tension: 184 lbs.
• Min. Bend Radius/Minor Axis: 5 in.
Electrical Characteristics (Overall):
• Nominal Outer Shield DC Resistance @ 20°C (Ohm/1000 ft): 3
• Max. Recommended Current: 1.1 Amps/Conductor @ 25°C
| technical specification: | |
| awg | 24 |
| # pairs | 8 |
| stranding | 7x32 |
| no. of conductors | 16 |
| conductor material | tinned copper |
| outer shield - type | tape |
| outer shield - material | aluminum foil-polyester tape |
| overall cable- nominal dia. (mm) | 12.167 |
| belden cable part number | 8168 |
