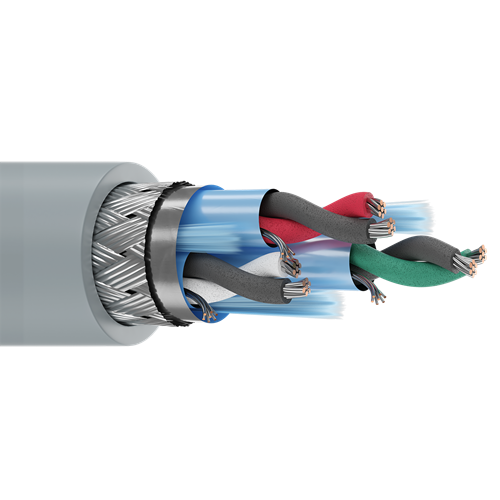

Belden 8163 24 AWG 3 Pairs Individually Shielded Low Capacitance EIA RS-232/422 and Digital Cable

Belden 8163 24 AWG 3 Pairs Individually Shielded Low Capacitance EIA RS-232/422 and Digital Cable

SKU:

Select a gauge:
  • Belden 8163 24 AWG 3 Pairs Individually Shielded Low Capacitance EIA RS-232/422 and Digital Cable
Length: FT
Enter footage in the box - Cut to one length. Min 1 ft - Max 10000 ft.
Now $7.51 /FT   Web pricing policy
BEFORE   $9.24 Now $7.51 /FT Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information Reviews
Product Information

Belden 8163 24 AWG 3 Pairs Individually Shielded Low Capacitance EIA RS-232/422 and Digital Cable

Inner Shield:
• Trade Name: Beldfoil® (Z-Fold®)

Mechanical Charactertistics (Overall):
• Bulk Cable Weight: 62 lbs/1000 ft.
• Max. Recommended Pulling Tension: 84 lbs.
• Min. Bend Radius/Minor Axis: 3.750 in.

Electrical Characteristics (Overall):
• Nom. Capacitance Conductor to Conductor (pF/ft): 12.5
• Nom. Capacitance Cond. to Other Conductor & Shield (pF/ft): 22
• Nom. Conductor DC Resistance @ 20°C (Ohm/1000 ft): 24.0
• Nominal Outer Shield DC Resistance @ 20°C (Ohm/1000 ft): 4.4
• Ind. Pair Nominal Shield DC Resistance @ 20 Deg. C: 18 Ohm/1000 ft
• Max. Recommended Current: 1.6 Amps/Conductor @ 25°C

technical specification:
awg 24
# pairs 3
stranding 7x32
no. of conductors 6
conductor material tinned copper
outer shield - type tape
outer shield - material aluminum foil-polyester tape
overall cable- nominal dia. (mm) 9.119
belden cable part number 8163
