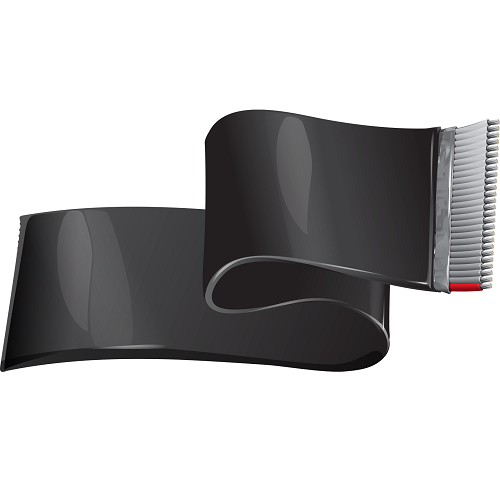

Belden 9L28309 28 AWG 9 Conductor 7x36 Stranding Tinned Copper 300V Shielded Flat Ribbon Cable

Description:-

Shielded Flat Ribbon Cable 0.050" Pitch, 9L283XX Series, 9 Conductor, 28 AWG (7x36) Tinned Copper, Gray PVC Insulation, Beldfoil Tape, Black PVC Jacket.

Insulation:-

• Material: PVC - Polyvinyl Chloride
• Nominal Wall Thickness: 0.010 in

Outer Shield:-

• Shield Type: Tape
• Material: Bi-Laminate (Alum+Poly)
• Material Trade Name: Beldfoil
• Coverage: 100%
• Drainwire: 28 AWG 7x36 Stranding Tinned Copper

Outer Jacket:-

• Material: PVC - Polyvinyl Chloride
• Nominal Wall Thickness: 0.038 in

Standards:-

• UL Voltage Rating: 300 V
• Nominal Characteristic Impedance: 45 Ohm
• Operating Temperature Range: -20°C to +105°C

Applications:-

• Internal interconnection, internal wiring of electronic equipment, reliable mass-termination to standard IDC connectors, and noisy environments

Specifications:-

• Size (AWG): 28
• No. of Conductor: 9
• Stranding: 7x36
• Conductor Material: TC - Tinned Copper
• Part Number: 9L28309
