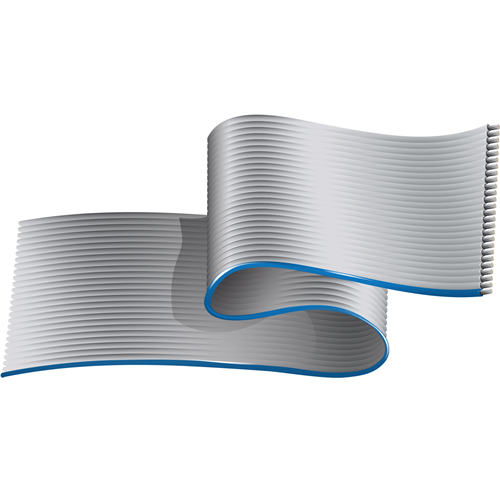

Belden 9L26026 Cable 26 AWG 26 Conductors Gray Ribbon .050″ Pitch PVC Cable

Belden’s (9L260XX series) .050″ pitch extruded gray ribbon cable was designed for general purpose electronic interconnect applications where higher current carrying capacities are required. The design also conforms to the electrical performance specifications outlined by the SCSI-3 parallel interface document. As with the 9L280XX series, the cable provides reliable mass-termination to standard .100″ contact IDC connectors, flexibility, consistent electricals and breakouts can be made easily with the tear feature design. In addition, the overall cable thickness is only .038″ ± .002″ allowing mateability with all standard IDC connectors. The cable is constructed of stranded 26 AWG (7x34) tinned copper conductors. Insulation material consists of Gray PVC, with a Blue polarity stripe for proper circuit alignment. Various conductor counts are standard; other sizes are available upon request. The cable is UL approved and CSA certified, and passes the VW-1 Vertical Wire Flame Test.

Color Code: Gray with Blue polarity stripe (standard).

Application: Internal interconnection or internal wiring of electronic equipment.

Physical Specifications:
• Conductor: 26 AWG (7x34) Tinned Copper
• Insulation: .010″ Nom. Wall Gray PVC
• Pitch: .050″ ± .002″
• Temperature Rating: -40 to +105°C
• Flammability Rating: UL: VW-1; CSA: FT1
• UL Approval: File #E12683, Style 2651
• CSA Approval: File #LL7874, CSA AWM I A 105°C 300V FT1
• Packaging: H100, H300, R300

Note:
• **Available in H100 packaging only.
• † Not available in H300 packaging.
• †† Not available in R300 packaging.
