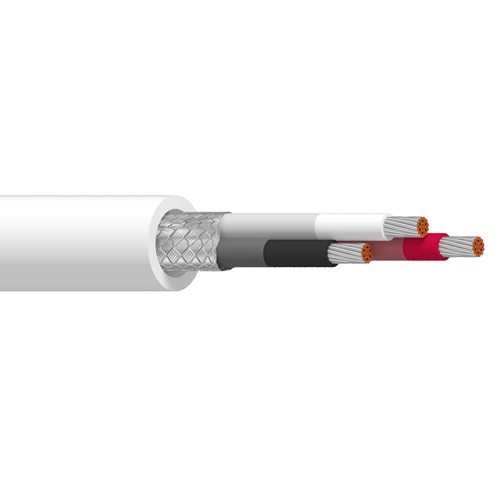

Belden 9967 22 AWG 3 Conductor 19x34 Stranding Tinned Copper 600V Electronic Cable

Belden 9967 22 AWG 3 Conductor 19x34 Stranding Tinned Copper 600V Electronic Cable

SKU: NES9967   Download PDF

Select a gauge:
  • Belden 9967 22 AWG 3 Conductor 19x34 Stranding Tinned Copper 600V Electronic Cable
Length: FT
Enter footage in the box - Cut to one length. Min 1 ft - Max 10000 ft.
Now $5.18 /FT   Web pricing policy
BEFORE   Now $5.18 /FT Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information Resources Reviews
Product Information

Belden 9967 22 AWG 3 Conductor 19x34 Stranding Tinned Copper 600V Electronic Cable

Description:

Electronic, 3 Conductor 22 AWG (19x34) Tinned Copper, PVC-NYL Insulation, Overall Tinned Copper Braid (90%) Shield, PVC Outer Jacket.

Insulation:

• Material: PVC/Nylon - Polyvinyl Chloride + Nylon
• Nom. Thickness: 0.0125 in (0.318 mm)
• Nom. Insulation Diameter: 0.056 in (1.4 mm)
• Nylon Nom. Thickness: 0.003 in (0.076 mm)

Outer Shield:

• Shield Type: Braid
• Material: Tinned Copper (TC)
• Coverage: 90%
• Tinned Copper Braid (90% coverage).

Outer Jacket:

• Material: PVC - Polyvinyl Chloride
• Nom. Thickness: 0.02 in (0.51 mm)
• Nom. Diameter: 0.184 in

Standards:

• Voltage Rating: 600 V RMS.
• Operating Temperature: -20°C to +105°C
• Military Compliance: MIL-W-16878E/17 (insulated conductor)

Applications:

• MIL-W-16878 (Type B) Spec; up to 600V analog signals ; up to 600V voltage control

Specifications:

• Size (AWG): 22
• No. of Conductor: 3
• Stranding: 19x34
• Conductor Material: TC - Tinned Copper
• Part Number: 9967
