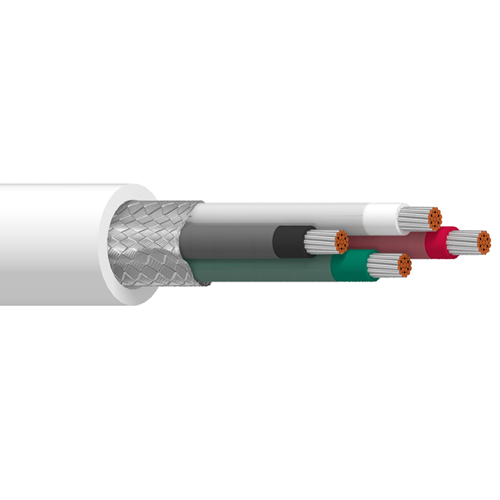

Belden 9964 20 AWG 4 Conductor 19x32 Stranding Tinned Copper 600V Electronic Cable

Belden 9964 20 AWG 4 Conductor 19x32 Stranding Tinned Copper 600V Electronic Cable

SKU: NES9964   Download PDF

Select a gauge:
  • Belden 9964 20 AWG 4 Conductor 19x32 Stranding Tinned Copper 600V Electronic Cable
Length: FT
Enter footage in the box - Cut to one length. Min 1 ft - Max 10000 ft.
Now $7.08 /FT   Web pricing policy
BEFORE   Now $7.08 /FT Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information Resources Reviews
Product Information

Belden 9964 20 AWG 4 Conductor 19x32 Stranding Tinned Copper 600V Electronic Cable

Description:

Electronic, 4 Conductor 20 AWG (19x32) Tinned Copper, PVC-NYL Insulation, Overall Tinned Copper Braid (90%) Shield, PVC Outer Jacket.

Insulation:

• Material: PVC/Nylon - Polyvinyl Chloride + Nylon
• Nom. Thickness: 0.0135 in (0.343 mm)
• Nom. Insulation Diameter: 0.064 in (1.6 mm)
• Nylon Nom. Thickness: 0.003 in (0.076 mm)

Outer Shield:

• Shield Type: Braid
• Material: Tinned Copper (TC)
• Coverage: 90%
• Overall Braid Shield (90% coverage).

Outer Jacket:

• Material: PVC - Polyvinyl Chloride
• Nom. Thickness: 0.025 in (0.64 mm)
• Nom. Diameter: 0.226 in

Standards:

• Voltage Rating: 600 V
• Operating Temperature Range: -20°C to +105°C.
• Military Compliance: MIL-W-16878E/17 (insulated conductor)

Applications:

• MIL-W-16878 (Type B) Spec; up to 600V analog signals ; up to 600V voltage control

Specifications:

• Size (AWG): 20
• No. of Conductor: 4
• Stranding: 19x32
• Conductor Material: TC - Tinned Copper
• Part Number: 9964
