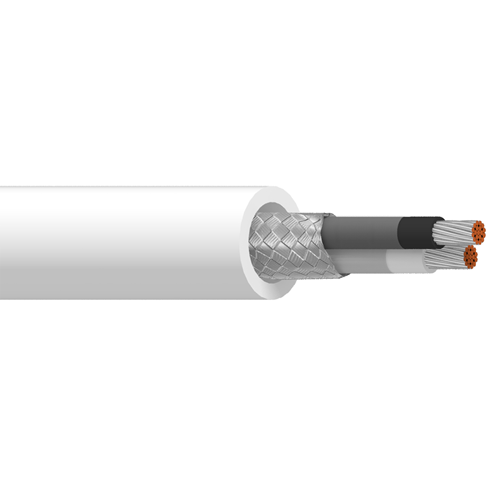

Belden 9952 16 AWG 2 Conductor 19x29 Stranding Tinned Copper 600V Electronic Cable

Description:

Electronic, 2 Conductor 16 AWG (19x29) Tinned Copper, PVC-NYL Insulation, Overall Tinned Copper Braid (90%) Shield, PVC Outer Jacket.

Insulation:

• Material: PVC/Nylon - Polyvinyl Chloride + Nylon
• Nom. Thickness: 0.016 in (0.41 mm)
• Nom. Insulation Diameter: 0.088 in (2.2 mm)
• Nylon Nom. Thickness: 0.004 in (0.10 mm)

Outer Shield:

• Shield Type: Braid
• Material: Tinned Copper (TC)
• Coverage: 90%
• Overall Tinned Copper Braid Shield.

Outer Jacket:

• Material: PVC - Polyvinyl Chloride
• Nom. Thickness: 0.025 in (0.64 mm)
• Nom. Diameter: 0.25 in (6.4 mm)

Standards:

• Voltage Rating: 600 V.
• Max. Current: 6.5 Amps per conductor at 25°C
• Nominal Capacitance (Cond-to-Cond): 57 pF/ft
• Operating Temperature Range: -20°C to +105°C.
• Military Compliance: MIL-W-16878E/17 (insulated conductor)

Applications:

• MIL-W-16878 (Type B) Spec; up to 600V analog signals ; up to 600V voltage control
