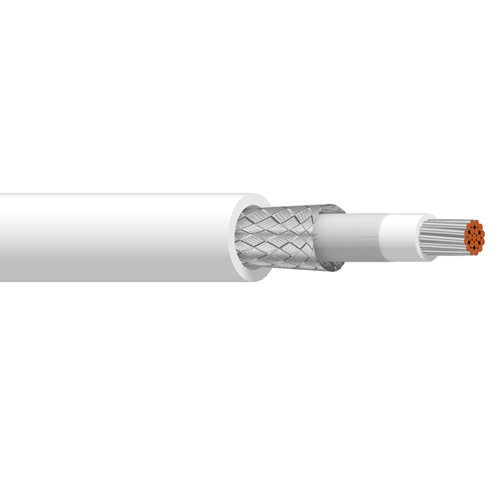

Belden 9951 16 AWG 1 Conductor 19x29 Stranding Tinned Copper 600V Electronic Cable

Description:

Electronic, 1 Conductor 16 AWG (19x29) Tinned Copper, PVC-NYL Insulation, Overall Tinned Copper Braid ( 90%) Shield, PVC Outer Jacket.

Insulation:

• Material: PVC/Nylon - Polyvinyl Chloride + Nylon
• Nom. Thickness: 0.016 in (0.41 mm)
• Nom. Insulation Diameter: 0.088 in (2.2 mm)

Outer Shield:

• Shield Type: Braid
• Material: Tinned Copper (TC)
• Coverage: 90%
• Tinned copper braid shield with 90% coverage.

Outer Jacket:

• Material: PVC - Polyvinyl Chloride
• Nom. Thickness: 0.016 in (0.41 mm)
• Nom. Diameter: 0.143 in
• Overall Cable Diameter (Nominal): 0.143 in

Standards:

• Voltage Rating: 600 V RMS.
• Max Current: 6.5 Amps per conductor at 25°C
• Operating Temperature Range: -20°C to +105°C.
• Military Compliance: MIL-W-16878E/17 (insulated conductor)

Applications:

• MIL-W-16878 (Type B) Spec; up to 600V analog signals ; up to 600V voltage control
