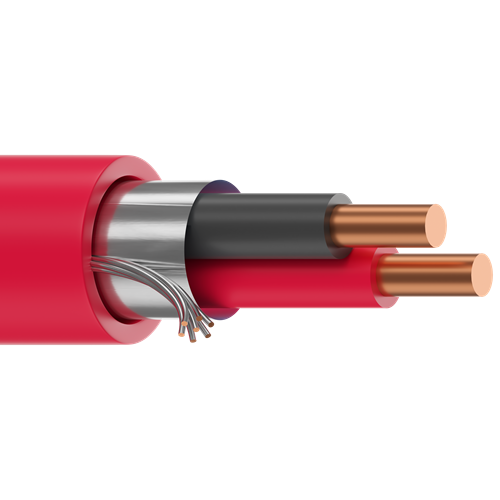

Belden 9574 18 AWG 2 Conductor Solid Bare Copper 300V Electronic Cable

Description:

Electronic, 2 Conductor 18 AWG (Solid) Bare Copper, PVC Insulation, Overall Beldfoil Shield, Red PVC Outer Jacket, FPLR.

Insulation:

• Material: PVC - Polyvinyl Chloride
• Nom. Thickness: 0.017 in (0.43 mm)
• Nom. Insulation Diameter: 0.60 in (15 mm)

Outer Shield:

• Shield Type: Tape
• Material: Bi-Laminate (Alum+Poly)
• Coverage: 100%
• Drainwire Type: 22 AWG (7x30) TC - Tinned Copper

Outer Jacket:

• Material: PVC - Polyvinyl Chloride
• Nom. Thickness: 0.037 in (0.94 mm)
• Nom. Diameter: 0.231 in (5.87 mm)

Standards:

• Voltage Rating: 300 V
• Operating Temperature: -40°C To +105°C

Applications:

• fire alarms; indoor applications; low voltage analog signals (4-20ma, 0-10v, ...); low voltage control (24v, …)
