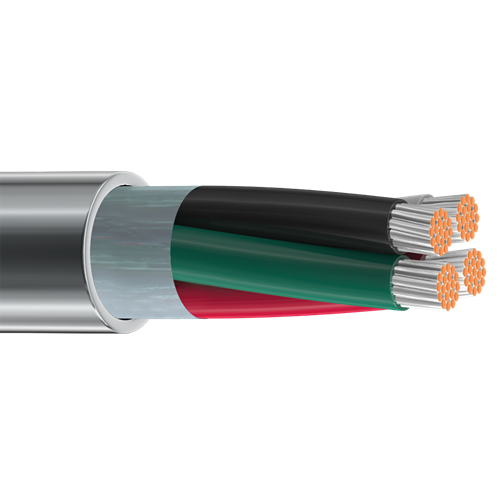

Belden 9418 18 AWG 4 Conductor 19x30 Stranding Tinned Copper 300V Electronic Cable

Description:

Electronic, 4 Conductor 18 AWG (19x30) Tinned Copper, SRPVC Insulation, Overall Beldfoil Shield, PVC Outer Jacket, CMG.

Insulation:

• Material: SR-PVC - Polyvinyl Chloride (Semi-Rigid)
• Nom. Thickness: 0.011 in (0.28 mm)
• Nom. Insulation Diameter: 0.066 in (1.7 mm)

Outer Shield:

• Shield Type: Tape
• Material: Bi-Laminate (Alum+Poly)
• Coverage: 100%
• Drainwire Type: 20 AWG (19x32) TC - Tinned Copper

Outer Jacket:

• Material: PVC - Polyvinyl Chloride
• Nom. Thickness: 0.035 in (0.89 mm)
• Nom. Diameter: 0.245 in (6.22 mm)
• Overall Cable Diameter (Nominal): 0.245 in (6.22 mm)

Standards:

• Operating Temperature: -20°C to +80°C
• Voltage Rating: 300 V (CMG), 300 V (UL AWM 2464)

Applications:

• low voltage analog signals (4-20ma, 0-10v, ...); low voltage control (24v, …); line level audio; voice communications; panel wiring

Specifications:

• Size (AWG): 18
• No. of Conductor: 4
• Stranding: 19x30
• Conductor Material: TC - Tinned Copper
• Part Number: 9418
