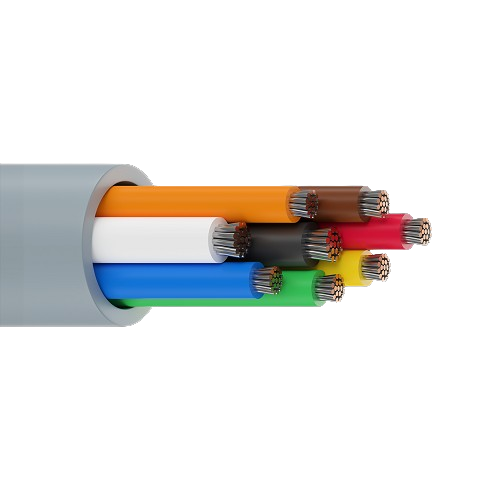

Belden 9405 18 AWG 6 Conductor 16 AWG 2 Conductor Tinned Copper 300V Electronic Cable

Description:-

Electronic, 2+6 Conductor 18+16 AWG (19x30+19x29) Tinned Copper, PVC Insulation, PVC Outer Jacket, CM.

Insulation:-

• Material: PVC - Polyvinyl Chloride
• Nom. Thickness: 0.019 in (0.48 mm)

Outer Jacket:-

• Material: PVC - Polyvinyl Chloride
• Nom. Thickness: 0.032 in (0.81 mm)
• Nom. Diameter: 0.345 in (8.76 mm)
• Overall Cable Diameter (Nominal): 0.345 in (8.76 mm)

Standards:-

• UL Voltage Rating: 300 V (CM, UL AWM 2464)
• Operating Temperature Range: -20°C to +80°C

Applications:-

• low voltage analog signals (4-20ma, 0-10v, ...); low voltage control (24v, …); line level audio; panel wiring

Specifications:-

• Size (AWG): 18
• No. of Conductor: 6
• Stranding: 19x30
• Conductor Material: TC - Tinned Copper

• Size (AWG): 16
• No. of Conductor: 2
• Stranding: 19x28
• Conductor Material: TC - Tinned Copper
• Part Number: 9405
