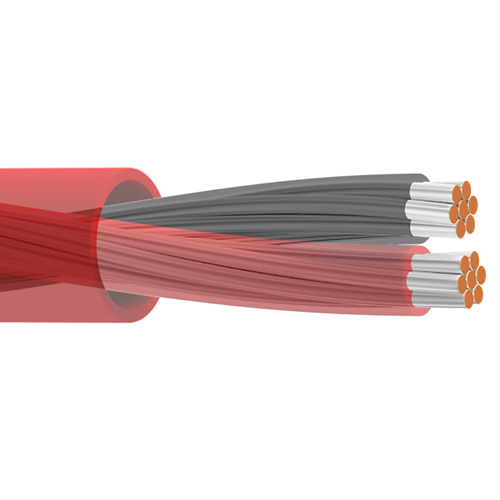

Belden 88442 Cable 22 AWG 1 Pair Audio Control and Instrumentation Multi Conductor Stranded 7x30 TC UnShielded Plenum FEP Jacket Cable

Belden 88442 Cable 22 AWG 1 Pair Audio Control and Instrumentation Multi Conductor Stranded 7x30 TC UnShielded Plenum FEP Jacket Cable

Select gauge from drop-down menu for prices:

Belden 88442 Cable 22 AWG 1 Pair Audio Control and Instrumentation Multi Conductor Stranded 7x30 TC UnShielded Plenum FEP Jacket Cable

Regular price $3.60 $2.39 Sale /per Foot

Belden 88442 Cable 22 AWG 1 Pair Audio Control and Instrumentation Multi Conductor Stranded 7x30 TC UnShielded Plenum FEP Jacket Cable

Description:
• 22 AWG stranded (7x30) tinned copper conductors, plenum, FEP insulation, twisted pairs, FEP jacket.

Insulation:
• Material: FEP - Fluorinated Ethylene Propylene
• Wall Thickness (mm): 0.178

Outer Jacket:
• Material: FEP - Fluorinated Ethylene Propylene
• Nom. Wall Thickness (mm): 0.229

Mechanical Charactertistics (Overall):
• Operating Tempeature Range: -70°C To +200°C
• Bulk Cable Weight: 11.906 Kg/Km
• Max. Recommended Pulling Tension: 66.723 N
• Min. Bend Radius/Minor Axis: 31.750 mm

Applicable Specifications and Agency Compliance (Overall):
Applicable Standards and Environmental Programs:
• NEC/(UL) Specification: CMP
• CEC/C(UL) Specification: CMP
• EU Directive 2011/65/EU (ROHS II): Yes
• EU CE Mark: Yes
• EU Directive 2000/53/EC (ELV): Yes
• EU Directive 2002/95/EC (RoHS): Yes
• EU RoHS Compliance Date (mm/dd/yyyy): 04/01/2005
• EU Directive 2002/96/EC (WEEE): Yes
• EU Directive 2003/11/EC (BFR): Yes
• CA Prop 65 (CJ for Wire and Cable): Yes
• MII Order #39 (China RoHS): Yes

Electrical Characteristics (Overall):
• Nom. Inductance (μH/m): 0.49215
• Nom. Capacitance Conductor to Conductor (pF/m): 55.777
• Nom. Conductor DC Resistance @ 20°C (Ohm/km): 49.215
• Nominal Conductor Loop Resistance @ 20°C (Ohm/km): 98.43
• Max. Operating Voltage - UL: 300 V RMS
• Max. Recommended Current: 3.3 Amps/Conductor @ 25°C (10°C rise in temp)

Flame Test:
• UL Flame Test: NFPA 262
• CSA Flame Test: FT6

Suitability:
• Suitability - Outdoor: Yes
• Suitability - Burial: Yes

Plenum/Non-Plenum:
• Plenum (Y/N): Yes
• Non-Plenum Number: 8442

technical specification:
awg 22
# conductors -
stranding 7x30
no. of conductors 2
conductor material tinned copper
dia. (mm) -
outer shield - material unshielded
overall cable- nominal dia. (mm) 2.591
belden cable part number 88442
