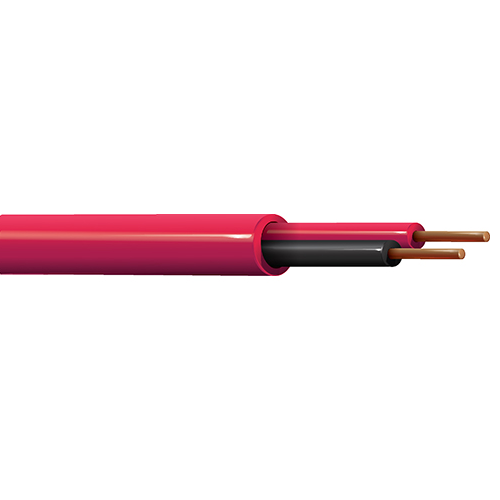

Belden 8795 22 AWG 2 Conductor Solid Bare Copper 300V Electronic Cable

Description:-

Electronic, 2 Conductor 22 AWG (Solid) Bare Copper, PO Insulation, PVC Outer Jacket, CM

Insulation:-

• Material: PE - Polyethylene
• Nom. Thickness: 0.018 in (0.46 mm)
• Nom. Insulation Diameter: 0.062 in (1.6 mm)

Outer Jacket:-

• Material: PVC - Polyvinyl Chloride
• Nom. Thickness: 0.022 in (0.56 mm)
• Nom. Diameter: 0.168 in
• Overall Cable Diameter (Nominal): 0.168 in

Standards:-

• UL Voltage Rating: 300 V
• Operating Temperature Range: -30°C To +60°C

Applications:-

• low voltage analog signals (4-20ma, 0-10v, ...); low voltage control (24v, …); line level audio; voice communications; panel wiring

Specifications:-

• Size (AWG): 22
• No. of Conductor: 2
• Stranding: Solid
• Conductor Material: BC - Bare Copper
• Part Number: 8795
