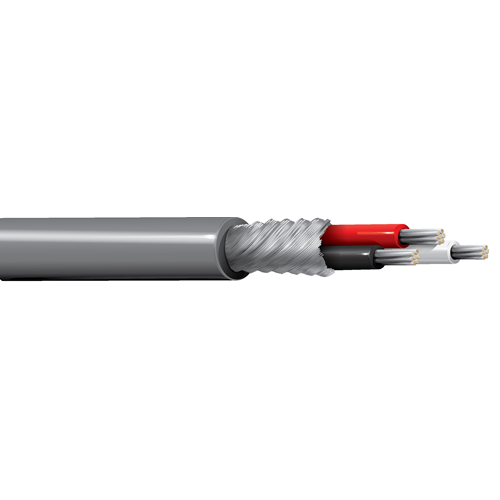

Belden 8791 18 AWG 3 Conductor 7x26 Stranding Tinned Copper 450V Electronic Cable

Description:

Electronic, 3 Conductor 18 AWG (7x26) Tinned Copper, PVC Insulation, Overall Tinned Copper Serve Shield, PVC Outer Jacket.

Insulation:

• Material: PVC - Polyvinyl Chloride
• Nom. Thickness: 0.022 in (0.56 mm)
• Nom. Insulation Diameter: 0.090 in (2.3 mm)

Outer Shield:

• Shield Type: Spiral Serve / Screen
• Material: Tinned Copper (TC)
• Coverage: 80%

Outer Jacket:

• Material: PVC - Polyvinyl Chloride
• Nom. Thickness: 0.028 in (0.71 mm)
• Nom. Diameter: 0.260 in (6.60 mm)
• Overall Cable Diameter (Nominal): 0.260 in (6.60 mm)

Standards:

• Voltage Rating: 450 V
• Operating Temperature: -30°C to +75°C

Applications:

• low voltage analog signals (4-20ma, 0-10v, ...); low voltage control (24v, …); line level audio; voice communications; panel wiring

Specifications:

• Size (AWG): 18
• No. of Conductor: 3
• Stranding: 7x26
• Conductor Material: TC - Tinned Copper
• Part Number: 8791
