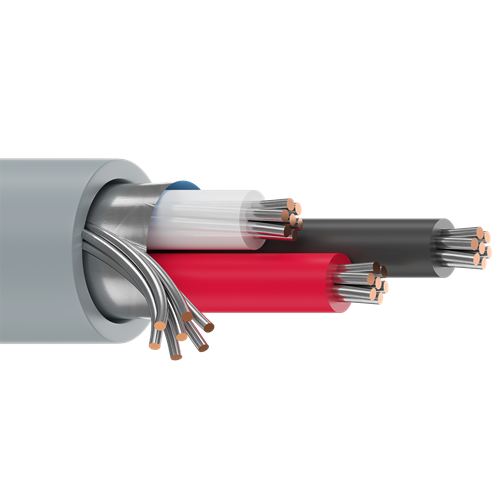

Belden 8771 22 AWG 3 Conductor 7x30 Stranding Tinned Copper 300V Electronic Cable

Description:

Electronic, 3 Conductor 22 AWG (7x30) Tinned Copper, PE Insulation, Overall Beldfoil Shield, PVC Outer Jacket, CM.

Insulation:

• Material: PE - Polyethylene
• Nom. Thickness: 0.017 in (0.43 mm)
• Nom. Insulation Diameter: 0.062 in (1.6 mm)

Outer Shield:

• Shield Type: Tape
• Material: Bi-Laminate (Alum+Poly)
• Coverage: 100%
• Drainwire Type: 22 AWG (7x30) TC - Tinned Copper

Outer Jacket:

• Material: PVC - Polyvinyl Chloride
• Nom. Thickness: 0.033 in (0.84 mm)
• Nom. Diameter: 0.199 in (5.05 mm)
• Overall Cable Diameter (Nominal): 0.199 in (5.05 mm)

Standards:

• Operating Temperature: -20°C to +60°C
• Voltage Rating: 300 V (CM), 300 V (UL AWM 2093)

Applications:

• low voltage analog signals (4-20ma, 0-10v, ...); low voltage control (24v, …); line level audio; voice communications; panel wiring

Specifications:

• Size (AWG): 22
• No. of Conductor: 3
• Stranding: 7x30
• Conductor Material: TC - Tinned Copper
• Part Number: 8771
