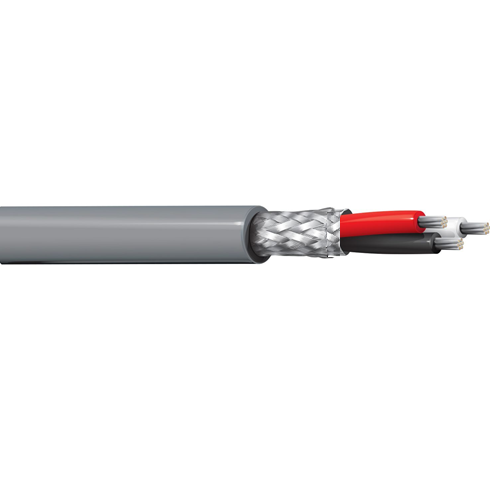

Belden 8735 22 AWG 3 Conductor 7x30 Stranding Tinned Copper 300V Electronic Cable

Description:

Electronic, 3 Conductor 22 AWG (7x30) Tinned Copper, PVC Insulation, Overall Tinned Copper Braid (70%) Shield, PVC Outer Jacket, CMG.

Insulation:

• Material: PVC - Polyvinyl Chloride
• Nom. Thickness: 0.016 in (0.41 mm)
• Nom. Insulation Diameter: 0.04 in (1.0 mm)

Outer Shield:

• Shield Type: Braid
• Material: Tinned Copper (TC)
• Coverage: 70%

Outer Jacket:

• Material: PVC - Polyvinyl Chloride
• Nom. Thickness: 0.025 in (0.64 mm)
• Nom. Diameter: 0.202 in (5.13 mm)

Standards:

• Voltage Rating: 300 V
• Operating Temperature: -20°C To +80°C

Applications:

• low voltage analog signals (4-20ma, 0-10v, ...); low voltage control (24v, …); line level audio; voice communications; panel wiring

Specifications:

• Size (AWG): 22
• No. of Conductor: 3
• Stranding: 7x30
• Conductor Material: TC - Tinned Copper
• Part Number: 8735
