Belden 8622 16 AWG 12 Conductor 19x29 Stranding Tinned Copper 600V Electronic Cable

Belden 8622 16 AWG 12 Conductor 19x29 Stranding Tinned Copper 600V Electronic Cable

SKU: NES8622   Download PDF

Select a gauge:
  • Belden 8622 16 AWG 12 Conductor 19x29 Stranding Tinned Copper 600V Electronic Cable
Length: FT
Enter footage in the box - Cut to one length. Min 1 ft - Max 10000 ft.
Now $22.54 /FT   Web pricing policy
BEFORE   $0.00 Now $22.54 /FT Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information Resources Reviews
Product Information

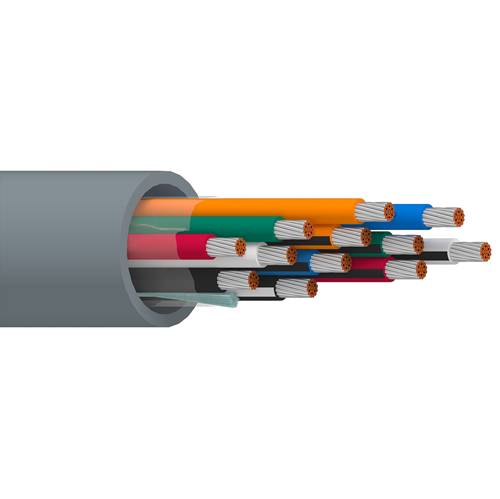

Belden 8622 16 AWG 12 Conductor 19x29 Stranding Tinned Copper 600V Electronic Cable

Description:

Electronic, 12 Conductor 16 AWG (19x29) Tinned Copper, PVC Insulation, PVC Outer Jacket.

Insulation:

• Material: PVC - Polyvinyl Chloride
• Nom. Thickness: 0.031 in (0.79 mm)
• Nom. Insulation Diameter: 0.121 in (3.07 mm)

Outer Jacket:

• Material: PVC - Polyvinyl Chloride
• Nom. Thickness: 0.060 in (1.5 mm)
• Nom. Diameter: 0.627 in (15.9 mm)
• Overall Cable Diameter (Nominal): 0.627 in (15.9 mm)

Standards:

• Voltage Rating: 600 V.
• Operating Temperature: -30°C to +75°C

Applications:

• Analog Signals and Control (up to 600V); Line Level Audio; Voice Communications; Panel Wiring

Specifications:

• Size (AWG): 16
• No. of Conductor: 12
• Stranding: 19x29
• Conductor Material: TC - Tinned Copper
• Part Number: 8622
