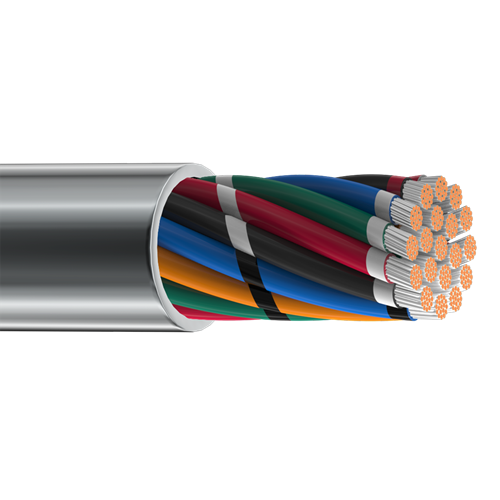

Belden 8619 18 AWG 19 Conductor 19x30 Stranding Tinned Copper 300V Electronic Cable

Description:

Electronic, 19 Conductor 18 AWG (19x30) Tinned Copper, PVC Insulation, PVC Outer Jacket, CMG.

Insulation:

• Material: PVC - Polyvinyl Chloride
• Nom. Thickness: 0.018 in (0.46 mm)
• Nom. Insulation Diameter: 0.080 in (2.0 mm)

Outer Jacket:

• Material: PVC - Polyvinyl Chloride
• Nom. Thickness: 0.045 in (1.1 mm)
• Nom. Diameter: 0.490 in (12.4 mm)
• Overall Cable Diameter (Nominal): 0.490 in (12.4 mm)

Standards:

• Operating Temperature: -20°C to +60°C
• Voltage Rating: 300 V (CMG), 300 V (UL AWM 2598)

Applications:

• low voltage analog signals (4-20ma, 0-10v, ...); low voltage control (24v, …); line level audio; voice communications; panel wiring
