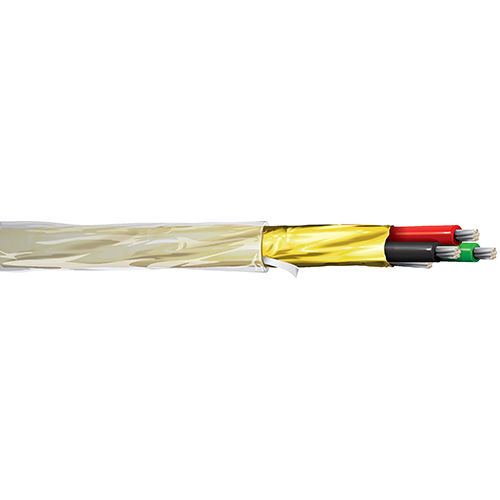

Belden 85240 20 AWG 3 Conductor 7x28 Stranding Tinned Copper 350V Electronic Cable

Description:-

High Temperature Electronic, 3 Conductor 20 AWG (7x28) Tinned Copper, ETFE Insulation, Overall Beldfoil Shield, ETFE Outer Jacket,

Insulation:-

• Material: ETFE - Ethylene Tetrafluoroethylene
• Nom. Thickness: 0.015 in (0.38 mm)
• Nom. Insulation Diameter: 0.068 in (1.7 mm)

Outer Shield:-

• Shield Type: Tape
• Material: Bi-Laminate (Alum+Kapton)
• Coverage: 100%
• Drainwire Type: 22 AWG (7x30) TC - Tinned Copper

Outer Jacket:-

• Material: ETFE - Ethylene Tetrafluoroethylene
• Nom. Thickness: 0.020 in (0.51 mm)
• Nom. Diameter: 0.193 in (4.90 mm)
• Overall Cable Diameter (Nominal): 0.193 in (4.90 mm)

Standards:-

• Voltage Rating: 350 V
• Operating Temperature Range: -30°C to +150°C

Applications:-

• extreme high/low temperature environments; chemical resistant; low voltage analog signals (4-20ma, 0-10v, ...); low voltage control (24v, …); instrumentation

Specifications:-

• Size (AWG): 20
• No. of Conductor: 3
• Stranding: 7x28
• Conductor Material: TC - Tinned Copper
• Part Number: 85240
