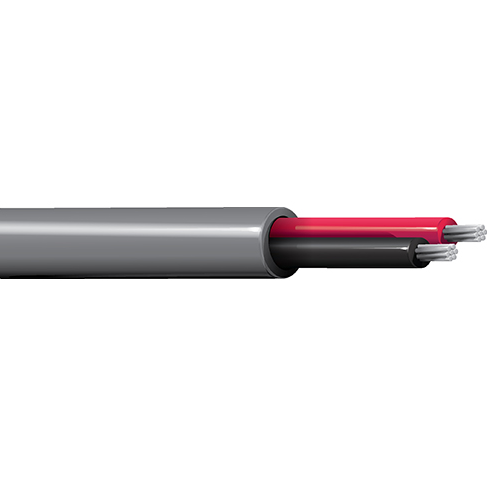

Belden 85103 16 AWG 3 Conductor 19x29 Stranding Tinned Copper 300V Electronic Cable

Description:-

High Temperature Electronic, 3 Conductor 16 AWG (19x29) Tinned Copper, ETFE Insulation, ETFE Outer Jacket.

Insulation:-

• Material: ETFE - Ethylene Tetrafluoroethylene
• Nom. Thickness: 0.0135 in (0.343 mm)
• Nom. Insulation Diameter: 0.082 in (2.1 mm)

Outer Jacket:-

• Material: ETFE - Ethylene Tetrafluoroethylene
• Nom. Thickness: 0.019 in (0.48 mm)
• Nom. Diameter: 0.223 in
• Overall Cable Diameter (Nominal): 0.223 in.

Standards:-

• UL Voltage Rating: 300 V
• Operating Temperature Range: -60°C To +150°C

Applications:-

• extreme high/low temperature environments; chemical resistant; low voltage analog signals (4-20ma, 0-10v, ...); low voltage control (24v, …); instrumentation

Specifications:-

• Size (AWG): 16
• No. of Conductor: 3
• Stranding: 19x29
• Conductor Material: TC - Tinned Copper
• Part Number: 85103
