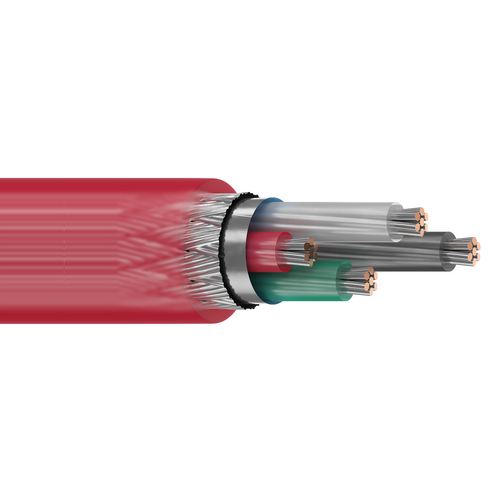

Belden 83804 12 AWG 4 Conductor 7x20 Stranding Tinned Copper 300V Electronic Cable

Description:-

High Temperature Electronic, 4 Conductor 12 AWG (7x20) Tinned Copper, FEP Insulation, Overall Beldfoil+Tinned Copper Braid (85%) Shield, Red FEP Outer Jacket, CMP FPLP.

Insulation:-

• Material: FEP - Fluorinated Ethylene Propylene
• Nom. Thickness: 0.016 in (0.41 mm)
• Nom. Insulation Diameter: 0.123 in (3.12 mm)

Outer Shield:-

• Layer: 1
• Shield Type: Tape
• Material: Bi-Laminate (Alum+Poly)
• Coverage: 100%

• Layer: 2
• Shield Type: Braid
• Material: Tinned Copper (TC)
• Coverage: 85%

Outer Jacket:-

• Material: FEP - Fluorinated Ethylene Propylene
• Nom. Thickness: 0.017 in (0.43 mm)
• Nom. Diameter: 0.365 in (9.27 mm)
• Overall Cable Diameter (Nominal): 0.365 in (9.27 mm)

Standards:-

• Operating Temperature Range: -70°C to +200°C
• UL Voltage Rating: 300 V (CMP), 300 V (AWM 1424)

Applications:-

• fire alarms; extreme high/low temperature environments; indoor/outdoor applications; low voltage analog signals (4-20ma, 0-10v, ...); low voltage control (24v, …)

Specifications:-

• Size (AWG): 12
• No. of Conductor: 4
• Stranding: 7x20
• Conductor Material: TC - Tinned Copper
• Part Number: 83804
