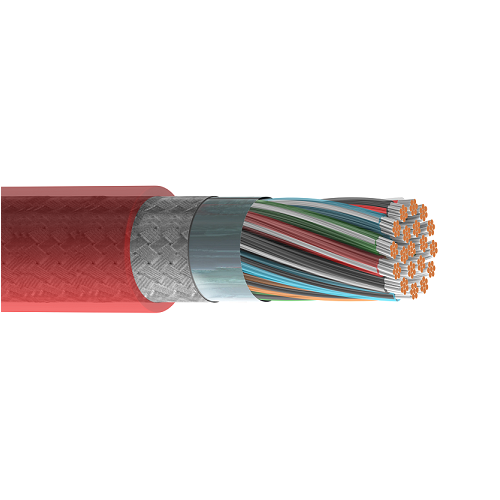

Belden 83569 22 AWG 19 Conductor 7x30 Stranding Tinned Copper 300V Electronic Cable

Description:-

High Temperature Electronic, 19 Conductor 22AWG (7x30) Tinned Copper, FEP Insulation, Overall Beldfoil+Tinned Copper Braid(85%) Shield, FEP Outer Jacket, CMP.

Insulation:-

• Material: FEP - Fluorinated Ethylene Propylene
• Nom. Thickness: 0.007 in (0.18 mm)
• Nom. Insulation Diameter: 0.042 in (1.1 mm)

Outer Shield:-

• Layer: 1
• Shield Type: Tape
• Material: Bi-Laminate (Alum+Poly)
• Coverage: 100%

• Layer: 2
• Shield Type: Braid
• Material: Tinned Copper (TC)
• Coverage: 85%

Outer Jacket:-

• Material: FEP - Fluorinated Ethylene Propylene
• Nom. Thickness: 0.015 in (0.38 mm)
• Nom. Diameter: 0.269 in (6.83 mm)
• Overall Cable Diameter (Nominal): 0.269 in (6.83 mm)

Standards:-

• UL Voltage Rating: 300 V (CMP)
• Operating Temperature Range: -70°C to +200°C

Applications:-

• extreme high/low temperature environments; chemical resistant; outdoor and burial applications; low voltage analog signals (4-20ma, 0-10v, ...); low voltage control (24v, …); line level audio; voice communications; panel wiring

Specifications:-

• Size (AWG): 22
• No. of Conductor: 19
• Stranding: 7x30
• Conductor Material: TC - Tinned Copper
• Part Number: 83569
