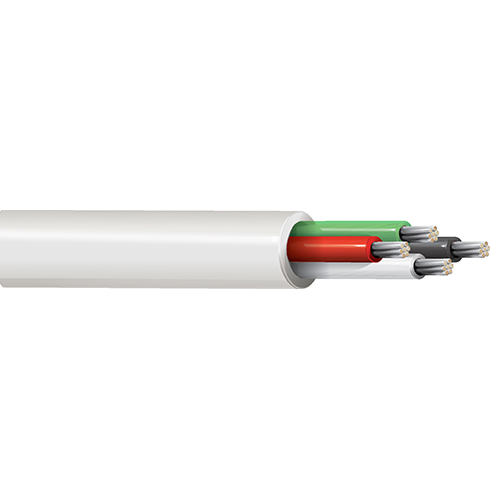

Belden 82444 22 AWG 4 Conductor 7x30 Stranding Tinned Copper 300V Electronic Cable

Description:

Electronic Cable, 4 Conductor 22 AWG (7x30) Tinned Copper, FEP Insulation, PVC Outer Jacket, CMP.

Insulation

• Material: FEP - Fluorinated Ethylene Propylene
• Nom. Thickness: 0.0065 in (0.17 mm)
• Nom. Insulation Diameter: 0.042 in (1.1 mm)

Outer Jacket:

• Material: PVC - Polyvinyl Chloride
• Nom. Thickness: 0.015 in (0.38 mm)
• Nom. Diameter: 0.134 in (3.40 mm)

Standards:

• Voltage Rating: 300 V
• Operating Temperature: 0°C To +60°C

Applications:

• indoor plenum applications; low voltage analog signals (4-20ma, 0-10v, ...); low voltage control (24v, …); line level audio; voice communications; panel wiring

Specifications:

• Size (AWG): 22
• No. of Conductor: 4
• Stranding: 7x30
• Conductor Material: TC - Tinned Copper
• Part Number: 82444
