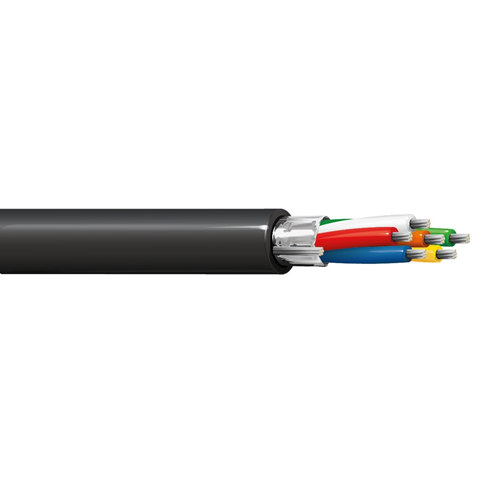

Belden 1212A 26 AWG 6 Conductor 7x34 Stranding Instrument Medical Interconnect Cable

Description:

Computer, Instrument and Medical Interconnect, 26 AWG stranded (7x34) tinned copper conductors, PVC insulation, Duofoil shield (100% coverage), 26 AWG stranded tinned copper drain wire, PVC jacket.

Insulation:

• Material: PVC - Polyvinyl Chloride
• Nom. Thickness: 0.015 in (0.38 mm)
• Nom. Insulation Diameter: 0.048 in (1.2 mm)

Outer Shield:

• Shield Type: Tape
• Material: Tri-Laminate (Alum+Poly+Alum)
• Coverage: 100%
• Drainwire Type: 26 AWG (7x34) TC

Outer Jacket:

• Material: PVC - Polyvinyl Chloride
• Nom. Thickness: 0.0365 in (0.927 mm)
• Nom. Diameter: 0.220 in

Applications:

• Applications for use with Molex SEMMCONN/AMP SDL connectors; computer communications; medical electronics interconnects; low voltage analog signals (4-20ma, 0-10v, ...); low voltage digital control (24v, …); line level audio; panel wiring.
