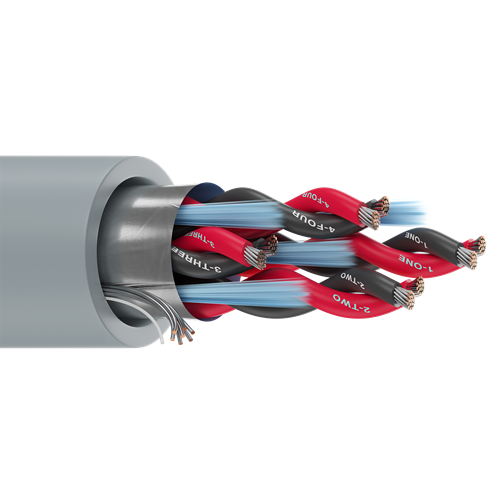

Belden 9556 18 AWG 6 Pairs 300V PLTC Multi Conductor Cable
Belden 9556 18 AWG 6 Pairs 300V PLTC Multi Conductor Cable
SKU: SKU:
Select a gauge:
- Belden 9556 18 AWG 6 Pairs 300V PLTC Multi Conductor Cable
- Belden 9556 18 AWG 6 Pairs 300V PLTC Multi Conductor Cable
Length:
FT
Enter footage in the box - Cut to one length. Min 1 ft - Max 10000 ft.
Unit price
per
Sold out
Shipping calculated at checkout.
IN STOCK Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
Couldn't load pickup availability
Product Information
Product Details
Mechanical Charactertistics (Overall):
• Bulk Cable Weight: 199.419 Kg/km
• Max. Recommended Pulling Tension: 1201.010 N
• Min. Bend Radius/Minor Axis: 127 mm
Electrical Characteristics (Overall):
• Max. Recommended Current: 4.5 Amps/Conductor @ 25°C
| technical specification: | |
| awg | 18 |
| # pairs | 6 |
| stranding | 19x30 |
| no. of conductors | 12 |
| conductor material | tinned copper |
| outer shield - type | tape |
| outer shield - material | aluminum foil-polyester tape |
| overall cable- nominal dia. (mm) | 12.624 |
| belden cable part number | 9556 |
