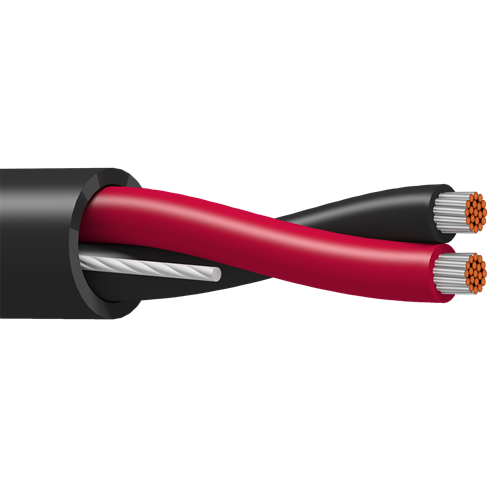

Belden 9410 16 AWG 1 Pair 19x29 Stranding 300V High Performance Instrumentation Cable
Belden 9410 16 AWG 1 Pair 19x29 Stranding 300V High Performance Instrumentation Cable
SKU: SKU: NES9410 Download PDF
Select a gauge:
- Belden 9410 16 AWG 1 Pair 19x29 Stranding 300V High Performance Instrumentation Cable
- Belden 9410 16 AWG 1 Pair 19x29 Stranding 300V High Performance Instrumentation Cable
Length:
FT
Enter footage in the box - Cut to one length. Min 1 ft - Max 10000 ft.
Unit price
per
Sold out
Shipping calculated at checkout.
IN STOCK Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
Couldn't load pickup availability
Product Information
Belden 9410 16 AWG 1 Pair 19x29 Stranding 300V High Performance Instrumentation Cable
Description:
High Performance Instrumentation, 1 Pair 16 AWG (19x29) Tinned Copper, PVC Insulation E2 Color Code, PVC Outer Jacket, PLTC.
Insulation:
• Material: PVC - Polyvinyl Chloride
• Nom. Thickness: 0.0185 in (0.470 mm)
• Nom. Insulation Diameter: 0.096 in (2.4 mm)
Outer Jacket:
• Material: PVC - Polyvinyl Chloride
• Nom. Thickness: 0.037 in (0.94 mm)
• Nom. Diameter: 0.260 in (6.60 mm)
• Overall Cable Diameter (Nominal): 0.260 in (6.60 mm)
Standards:
• Voltage Rating: 300 V (PLTC, CMG)
• Operating Temperature: -30°C to +105°C
Applications:
• Instrumentation, Sensors, Valves, Positioners, 4-20mA, 0-10V
Specifications:
• Size (AWG): 16
• No. of Pair: 1
• Stranding: 19x29
• Conductor Material: TC - Tinned Copper
• Part Number: 9410
Description:
High Performance Instrumentation, 1 Pair 16 AWG (19x29) Tinned Copper, PVC Insulation E2 Color Code, PVC Outer Jacket, PLTC.
Insulation:
• Material: PVC - Polyvinyl Chloride
• Nom. Thickness: 0.0185 in (0.470 mm)
• Nom. Insulation Diameter: 0.096 in (2.4 mm)
Outer Jacket:
• Material: PVC - Polyvinyl Chloride
• Nom. Thickness: 0.037 in (0.94 mm)
• Nom. Diameter: 0.260 in (6.60 mm)
• Overall Cable Diameter (Nominal): 0.260 in (6.60 mm)
Standards:
• Voltage Rating: 300 V (PLTC, CMG)
• Operating Temperature: -30°C to +105°C
Applications:
• Instrumentation, Sensors, Valves, Positioners, 4-20mA, 0-10V
Specifications:
• Size (AWG): 16
• No. of Pair: 1
• Stranding: 19x29
• Conductor Material: TC - Tinned Copper
• Part Number: 9410
