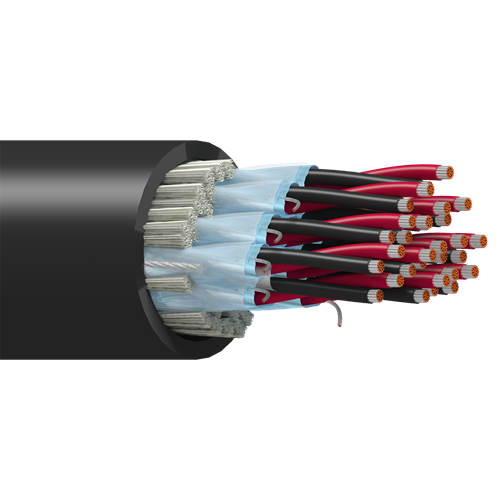

Belden 9392 18 AWG 15 Pairs 300V PLTC Multi Conductor Cable
Mechanical Charactertistics (Overall):
• Bulk Cable Weight: 604.953 Kg/Km
• Max. Recommended Pulling Tension: 4893.020 N
• Min. Bend Radius/Minor Axis: 203.200 mm
| technical specification: | |
| awg | 18 |
| # pairs | 15 |
| stranding | 19x30 |
| no. of conductors | 30 |
| conductor material | tinned copper |
| outer shield - material | unshielded |
| overall cable- nominal dia. (mm) | 20.396 |
| belden cable part number | 9392 |
