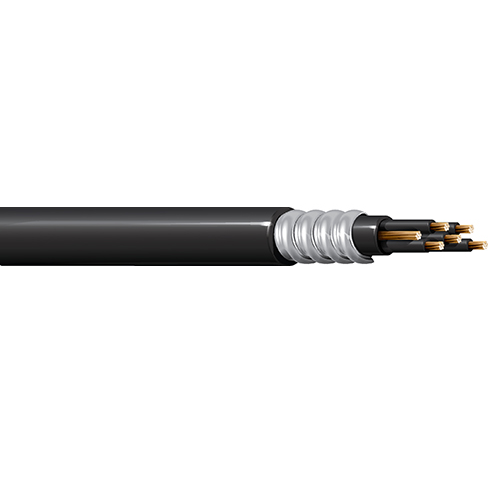

Belden 29023 16 AWG 7x24 Stranding Bare Copper 600V Canadian Instrumentation Cable

Description:

Canadian Instrumentation Cable TC-ACIC 600V, 15+G Conductor 16 AWG (7x24) Bare Copper, XLPE Insulation, PVC Inner Jacket, Aluminum Interlock Armor, PVC Outer Jacket, 90C Dry/Wet CSA HL SUN RES -40C.

Insulation:

• Material: XLP, XLPO, XLPE (Thermoset)
• Nom. Thickness: 0.030 in (0.76 mm)
• Nom. Insulation Diameter: 0.118 in (3.00 mm)

Inner Jacket:

• Material: PVC - Polyvinyl Chloride
• Nom. Thickness: 0.063 in (1.6 mm)
• Nom. Diameter: 0.685 in (17.4 mm)

Outer Jacket:

• Material: PVC - Polyvinyl Chloride
• Nom. Thickness: 0.052 in (1.3 mm)
• Nom. Diameter: 1.014 in
• Overall Cable Diameter (Nominal): 1.014 in

Armor:

• Armor Type and Material: AIA - Aluminum Interlock Armor
• Armor Thickness: 0.025 in (0.64 mm)
• Diameter Over Armor: 0.910 in (23.1 mm)
• Corrugated Mylar Tape

Standards:

• Voltage Rating: 600 V
• Operating Temperature: -40°C To +90°C

Applications:

• Power and Control Applications up to 600V
