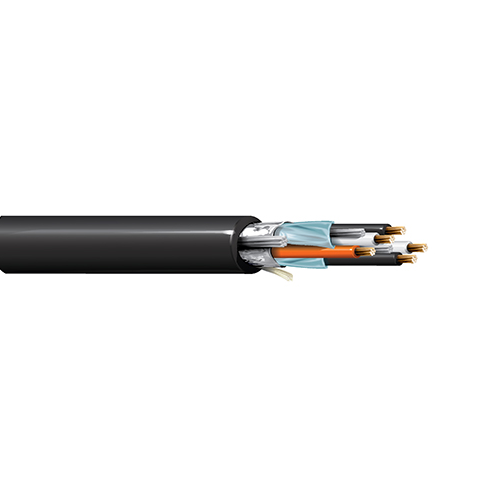

Belden 1494A 16 AWG 8 Pairs 300V PLTC Multi Conductor Cable

Belden 1494A 16 AWG 8 Pairs 300V PLTC Multi Conductor Cable

SKU:

Select a gauge:
  • Belden 1494A 16 AWG 8 Pairs 300V PLTC Multi Conductor Cable
Length: FT
Enter footage in the box - Cut to one length. Min 1 ft - Max 10000 ft.
Now $11.33 /FT   Web pricing policy
BEFORE   Now $11.33 /FT Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information Reviews
Product Information

Product Details

Outer Jacket:
• Material: PVC - Polyvinyl Chloride
• Nom. Wall Thickness (mm): 1.6002
• Outer Jacket Ripcord: Yes

Mechanical Charactertistics (Overall):
• Bulk Cable Weight: 315 lbs/1000 ft.
• Max. Recommended Pulling Tension: 795 lbs.
• Min. Bend Radius/Minor Axis: 6.900 in.

Electrical Characteristics (Overall):
• Nom. Capacitance Cond. to Other Conductor and Shield (pF/ft): 60
• Nom. Conductor DC Resistance @ 20°C (Ohm/1000 ft): 3.67 (16 AWG)
• Nom. Conductor DC Resistance @ 20°C (Ohm/1000 ft): 14.7 (22 AWG)
• Nominal Outer Shield DC Resistance @ 20°C (Ohm/1000 ft): 2.95
• Ind. Pair Nominal Shield DC Resistance @ 20 Deg. C: 5.070 Ohm/1000 ft

technical specification:
awg 16
# pairs 8
stranding 7x24
no. of conductors 17
conductor material bare copper
outer shield - type tape
outer shield - material aluminum foil-polyester tape
overall cable- nominal dia. (mm) 17.475
belden cable part number 1494A
