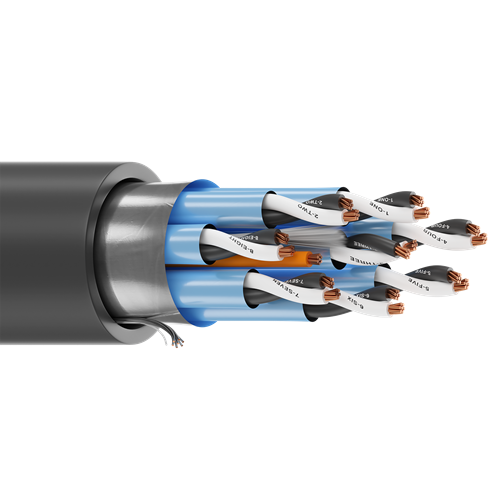

Belden 1476A 18 AWG 8 Pairs 300V PLTC Multi Conductor Cable
Belden 1476A 18 AWG 8 Pairs 300V PLTC Multi Conductor Cable
SKU: SKU:
Select a gauge:
- Belden 1476A 18 AWG 8 Pairs 300V PLTC Multi Conductor Cable
- Belden 1476A 18 AWG 8 Pairs 300V PLTC Multi Conductor Cable
Length:
FT
Enter footage in the box - Cut to one length. Min 1 ft - Max 10000 ft.
Unit price
per
Sold out
Shipping calculated at checkout.
IN STOCK Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
Couldn't load pickup availability
Product Information
Belden 1476A 18 AWG 8 Pairs 300V PLTC Multi Conductor Cable
Mechanical Charactertistics (Overall):
• Bulk Cable Weight: 330.380 Kg/Km
• Max. Recommended Pulling Tension: 2228.550 N
• Min. Bend Radius/Minor Axis: 152.400 mm
Electrical Characteristics (Overall):
• Nominal Outer Shield DC Resistance @ 20°C (Ohm/km): 14.6661
• Max. Recommended Current: 2.5 Amps/Conductor @ 25°C
| technical specification: | |
| awg | 18 |
| # pairs | 8 |
| stranding | 7x26 |
| no. of conductors | 17 |
| conductor material | bare copper |
| outer shield - type | tape |
| outer shield - material | aluminum foil-polyester tape |
| overall cable- nominal dia. (mm) | 15.240 |
| belden cable part number | 1476A |
