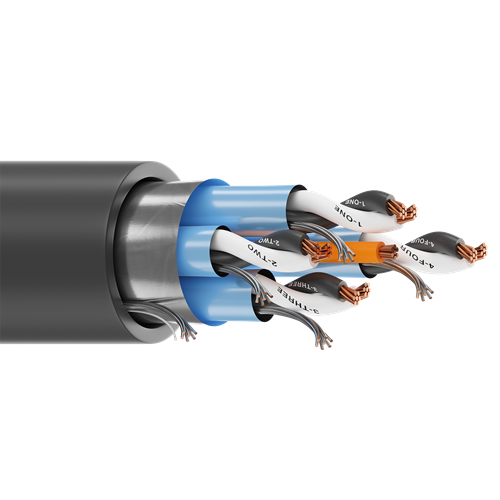

Belden 1475A 18 AWG 4 Pairs 300V PLTC Multi Conductor Cable
Belden 1475A 18 AWG 4 Pairs 300V PLTC Multi Conductor Cable
SKU: SKU:
Select a gauge:
- Belden 1475A 18 AWG 4 Pairs 300V PLTC Multi Conductor Cable
- Belden 1475A 18 AWG 4 Pairs 300V PLTC Multi Conductor Cable
Length:
FT
Enter footage in the box - Cut to one length. Min 1 ft - Max 10000 ft.
Unit price
per
Sold out
Shipping calculated at checkout.
IN STOCK Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
Couldn't load pickup availability
Product Information
Belden 1475A 18 AWG 4 Pairs 300V PLTC Multi Conductor Cable
Mechanical Charactertistics (Overall):
• Bulk Cable Weight: 197.335 Kg/Km
• Max. Recommended Pulling Tension: 1187.670 N
• Min. Bend Radius/Minor Axis: 120.650 mm
Electrical Characteristics (Overall):
• Nom. Conductor DC Resistance @ 20°C (Ohm/km): 19.2267 (18 AWG)
• Nom. Conductor DC Resistance @ 20°C (Ohm/km): 48.2307 (22 AWG)
• Nominal Outer Shield DC Resistance @ 20°C (Ohm/km): 15.7488
• Ind. Pair Nominal Shield DC Resistance @ 20 Deg. C: 33.794 Ohm/km
• Max. Recommended Current: 3.5 Amps/Conductor @ 25°C
| technical specification: | |
| awg | 18 |
| # pairs | 4 |
| stranding | 7x26 |
| no. of conductors | 9 |
| conductor material | bare copper |
| outer shield - type | tape |
| outer shield - material | aluminum foil-polyester tape |
| overall cable- nominal dia. (mm) | 12.014 |
| belden cable part number | 1475A |
