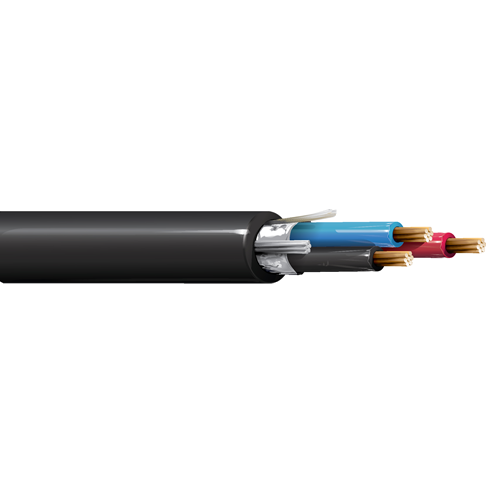

Belden 1093A 18 AWG 4 Triads 600V Tray Cable

Outer Jacket:
• Material: PVC - Polyvinyl Chloride
• Nom. Wall Thickness (mm): 1.6002
• Outer Jacket Ripcord: Yes

Overall Cabling Lay Length and Direction:
• Length (in.): 6.970
• Twists (twist/ft): 1.72

Pair Lay Length and Direction:
• Lay Length (in.): 2.500
• Twists (twist/ft): 4.800

Mechanical Charactertistics (Overall):
• Bulk Cable Weight: 180.300 lbs/1000 ft.
• Max. Recommended Pulling Tension: 347 lbs.
• Min. Bend Radius/Minor Axis: 6 in.

Applicable Specifications and Agency Compliance (Overall):
Applicable Standards and Environmental Programs:
• NEC/(UL) Specification: NPLF, TC-ER

Electrical Characteristics (Overall):
• Nom. Capacitance Conductor to Shield (pF/ft): 43 (Individual)
• Nom. Capacitance Conductor to Shield (pF/ft): 30 (Overall)
• Nom. Mutual Capacitance (pF/ft): 37
• Nom. Conductor DC Resistance @ 20°C (Ohm/1000 ft): 5.86
• Nom. Inner Shield DC Resistance @ 20°C (Ohm/1000 ft): 7.11
• Nominal Outer Shield DC Resistance @ 20°C (Ohm/1000 ft): 4.47
