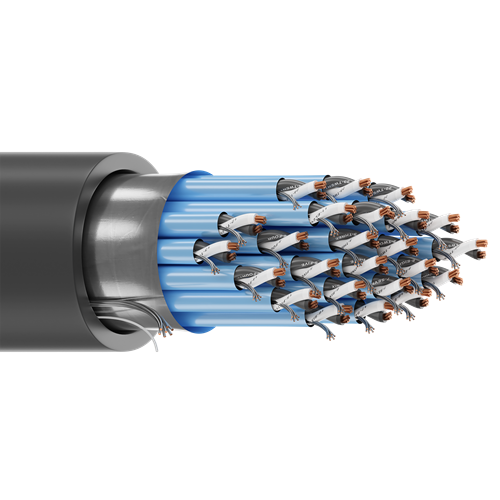

Belden 1089A 16 AWG 36 Pairs 600V Multi Conductor BC Tray Cable
Belden 1089A 16 AWG 36 Pairs 600V Multi Conductor BC Tray Cable
SKU: SKU:
Select a gauge:
- Belden 1089A 16 AWG 36 Pairs 600V Multi Conductor BC Tray Cable
- Belden 1089A 16 AWG 36 Pairs 600V Multi Conductor BC Tray Cable
Length:
FT
Enter footage in the box - Cut to one length. Min 1 ft - Max 10000 ft.
Unit price
per
Sold out
Shipping calculated at checkout.
IN STOCK Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
Couldn't load pickup availability
Product Information
Product Details
Overall Cabling Lay Length and Direction:
• Length (mm): 380.9985
Mechanical Charactertistics (Overall):
• Bulk Cable Weight: 1517.960 Kg/Km
• Max. Recommended Pulling Tension: 11592 N
• Min. Bend Radius/Minor Axis: 335.280 mm
Electrical Characteristics (Overall):
• Nominal Outer Shield DC Resistance @ 20°C (Ohm/km): 9.67895
| technical specification: | |
| awg | 16 |
| # paris | 36 |
| stranding | 7x24 |
| no. of conductors | 72 |
| conductor material | bare copper |
| outer shield - type | tape |
| outer shield - material | aluminum foil-polyester tape |
| overall cable- nominal dia. (mm) | 33.553 |
| belden cable part number | 1089A |
