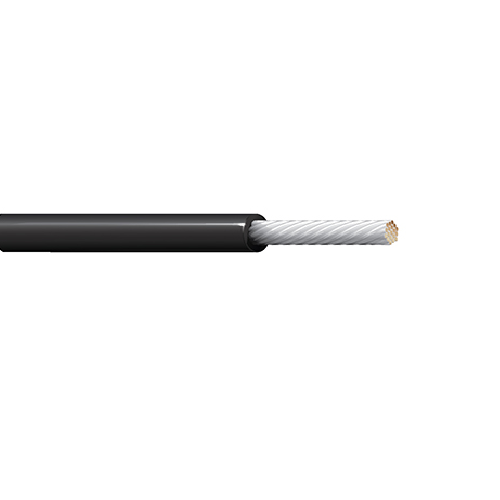

Belden 83025 22 AWG 1 Conductor 7x30 Stranding Silver Plated Copper Lead Wire

Belden 83025 22 AWG 1 Conductor 7x30 Stranding Silver Plated Copper Lead Wire

SKU: NES83025 Download PDF

gauge:
  • Belden 83025 22 AWG 1 Conductor 7x30 Stranding Silver Plated Copper Lead Wire
FT
Enter footage in the box - Cut to one length. Min 1 ft - Max 10000 ft.
Now $1.52 /FT
BEFORE   Now $1.52 /FT
Sold out
Web pricing policyShipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000.* Only on standard purchases of cables and wires.
View full details
Product Information Resources Reviews
Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Belden 83025 22 AWG 1 Conductor 7x30 Stranding Silver Plated Copper Lead Wire

Description:

High Temp Plastic Lead Wire, 22 AWG (7x30) Silver Plated Copper, TFE Insulation, AWM 1180 300V 200C TYPE EE MIL-W-16878/5 1000V 200C.

Insulation:

• Material: PTFE - Polytetrafluoroethylene
• Nom. Thickness: 0.015 in (0.38 mm)
• Nom. Insulation Diameter: 0.060 in (1.5 mm)
• Overall Cable Diameter (Nominal): 0.060 in (1.5 mm)

Standards:

• UL Temperature: 200°C
• Military Compliance: MIL-W-16878/5
• Voltage Rating: 300 V RMS (UL AWM 1180), 1000 V RMS (Mil-W-16878/5)

Applications:

• high temperature, inter-connection circuits, internal wiring of computers and electronic equipment, (Type EE) MIL-W-16878/5 applications

Specifications:

• Size (AWG): 22
• No. of Conductor: 1
• Stranding: 7x30
• Conductor Material: SC - Silvered Copper
• Part Number: 83025
