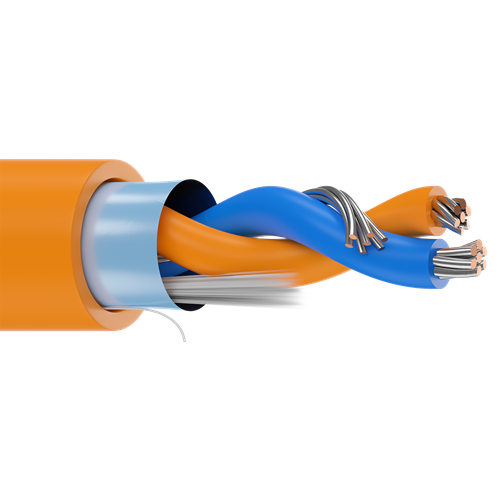

Belden 3076F 18 AWG 1 Pair 7x26 Stranding Tinned Copper 300V Fieldbus Cable

Description:

Fieldbus, 1 Pair 18 AWG (7x26) Tinned Copper, PP Insulation, Overall Beldfoil Shield, PVC Outer Jacket, Flexible SUN RES OIL RES, PLTC-ER, ITC-ER, CMX-Outdoor, CM.

Insulation:

• Material: PP - Polypropylene
• Nom. Thickness: 0.022 in (0.56 mm)
• Nom. Insulation Diameter: 0.088 in (2.2 mm)

Outer Shield:

• Shield Type: Tape
• Material: Bi-Laminate (Alum+Poly)
• Coverage: 100%
• Drainwire Type: 20 AWG (7x28) TC - Tinned Copper

Outer Jacket:

• Material: PVC - Polyvinyl Chloride
• Nom. Thickness: 0.050 in (1.3 mm)
• Nom. Diameter: 0.280 in (7.11 mm)
• Outer Jacket1 Table Notes: Jacket OD +/- 0.010
• Overall Cable Diameter (Nominal): 0.280 in (7.11 mm)

Standards:

• Operating Temperature: -40°C to +105°C
• Nom. Characteristic Impedance: 100 Ohm
• Voltage Rating: 300 V (CM, PLTC-ER), 150 V (ITC-ER)

Applications:

• exposure to rodent, crush, or cut through force, harsh environment, digital and serial two-way communication, oil and gas extraction and refining sites, petrochemical, Profibus process automation or Foundation FieldBus process automation, extreme temperature environments, exposure to humidity/moisture, dust, and oil, remote locations long-distance applications, etc.

Specifications:

• Size (AWG): 18
• No. of Pair: 1
• Stranding: 7x26
• Conductor Material: TC - Tinned Copper
• Part Number: 3076F
