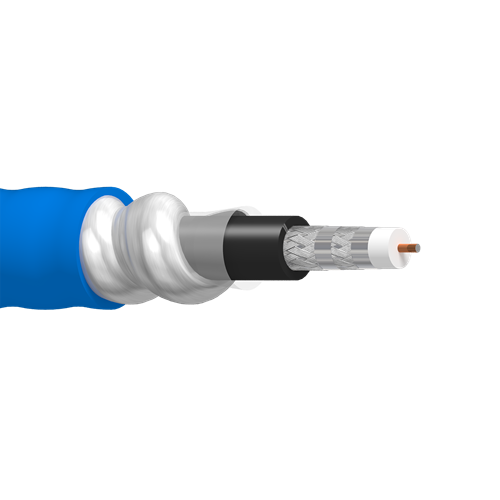

Belden 123092A 18 AWG 1 Conductor Solid RG-6 75 Ohm ControlBus Coax Cable

Description:

ControlBus, Coax RG6 18AWG (Solid) Bare Copper Covered Steel, PO Insulation, Overall Duofoil+ Aluminum Braid(60%)+Overall Duofoil+Aluminum Braid (40%) Shield, PVC Inner Jacket, Aluminum Interlock Armor, PVC Outer Jacket, CM.

Insulation:

• Material: PE - Polyethylene (Foam)
• Nom. Insulation Diameter: 0.178 in (4.52 mm)

Inner Jacket:

• Material: PVC - Polyvinyl Chloride
• Nom. Diameter:  0.298 in (7.57 mm)

Outer Shield:

• Layer 1: Outer Shield Type Tape, Tri-Laminate (Alum+Poly+Alum) Material, Material Trade Name Duofoil, Coverage 100%

• Layer 2: Outer Shield Type Braid, Aluminum Material, Coverage 60%

• Layer 3: Outer Shield Type Tape, Tri-Laminate (Alum+Poly+Alum) Material, Material Trade Name Duofoil, Coverage 100%

• Layer 4: Outer Shield Type Braid, Aluminum Material, Coverage 40%

Armor:

• Armor Type and Material: AIA - Aluminum Interlock Armor
• Armor Thickness: 0.025 in (0.64 mm)
• Diameter Over Armor: 0.501 in (12.7 mm)

Outer Jacket:

• Material: PVC - Polyvinyl Chloride
• Nom. Diameter: 0.591 in (15.0 mm)
• Overall Cable Diameter (Nominal): 0.591 in (15.0 mm)

Applications:

• Exposure to rodent, crush, or cut through force, harsh environment, factory automation, ControlNet, Modbus II, Industrial Coax, Belden ControlNet cables provide maximum signal integrity and run length exceeding the high-speed, time-critical requirements necessary for ControlNet factory floor applications.
