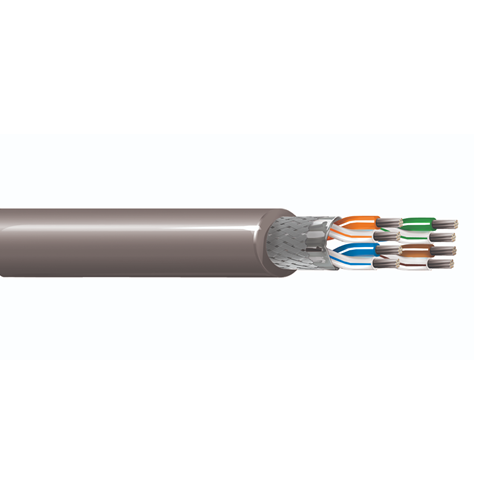

Belden 9844 24 AWG 4 Pair 7x32 Stranding RS485 Tinned Copper 300V Multi-Pair Cable

Description:

RS-485, 4 Pair 24 AWG (7x32) Tinned Copper, PE Insulation, Overall Beldfoil+Tinned Copper Braid (90%) Shield, PVC Outer Jacket, CM.

Insulation:

• Material: PE - Polyethylene
• Nom. Thickness: 0.022 in (0.56 mm)
• Nom. Insulation Diameter: 0.068 in (1.7 mm)

Outer Shield:

• Shield Type: Tape
• Material: Bi-Laminate (Alum+Poly)
• Coverage: 100%
• Drainwire Type: 24 AWG (7x32) TC - Tinned Copper

• Shield Type: Braid
• Material: Tinned Copper (TC)
• Coverage: 90%

Outer Jacket:

• Material: PVC - Polyvinyl Chloride
• Nom. Thickness: 0.035 in (0.89 mm)
• Nom. Diameter: 0.390 in (9.91 mm)
• Overall Cable Diameter (Nominal): 0.390 in (9.91 mm)
• Outer Jacket1 Table Notes: Jacket OD +/- 0.030

Standards:

• Impedance: 120 Ohm
• Operating Temperature: -30°C to +80°C
• Voltage Rating: 300 V (CM), 30 V (UL AWM 2919)

Applications:

• RS-485, POS; Computer communications; Low Voltage Analog Signals (4-20ma, 0-10v, ...); Low Voltage Digital Control (24v, …); Line Level Audio; Panel Wiring; serial communication (RS-485 standard) comprising of PLCs, VFDs, HMIs, motors, RTU, SCADA, etc. within noisy environments over long distances, etc.

Specifications:

• Size (AWG): 24
• No. of Pair: 4
• Stranding: 7x32
• Conductor Material: TC - Tinned Copper
• Part Number: 9844
