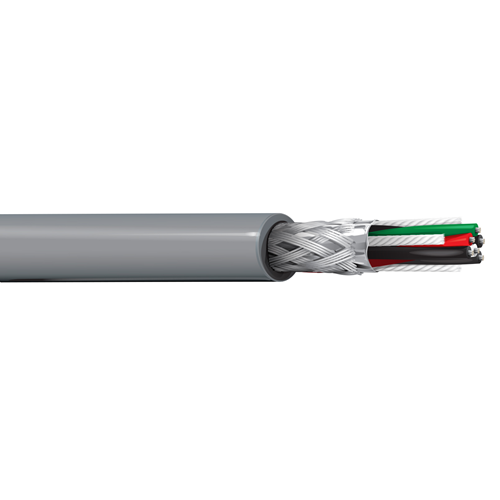

Belden 8133 28 AWG 3 Pair 7x36 Stranding Tinned Copper 120 Ohm Computer EIA RS-232/485 Cable

Description:

Computer EIA RS-232/485 Cable, 3-Pair, 28 AWG stranded (7x36) tinned copper conductors, Datalene insulation, overall Beldfoil (100% coverage) + tinned copper braid shield (65% coverage), 28 AWG stranded tinned copper drain wire, PVC jacket.

Insulation:

• Material: PE - Polyethylene (Foam)
• Nom. Thickness: 0.0145 in (0.368 mm)

Outer Shield:

• Shield Type: Tape
• Material: Bi-Laminate (Alum+Poly)
• Coverage: 100%
• Drainwire Type: 28 AWG (7x36) TC - Tinned Copper

• Shield Type: Braid
• Material: Tinned Copper (TC)
• Coverage: 65%

Outer Jacket:

• Material: PVC - Polyvinyl Chloride
• Nom. Thickness: 0.035 in (0.89 mm)
• Nom. Diameter: 0.265 in (6.73 mm)
• Overall Cable Diameter (Nominal): 0.265 in (6.73 mm)

Standards:

• Impedance: 120 Ohm
• Voltage Rating: 30 V (UL AWM 2919)
• Operating Temperature: -30°C to +80°C

Applications:

• RS-232 extended distance applications; RS-485 applications; computer communications; low voltage analog signals (4-20ma, 0-10v, ...); low voltage digital control (24v, …); line level audio; panel wiring

Specifications:

• Size (AWG): 28
• No. of Pair: 3
• Stranding: 7x36
• Conductor Material: TC - Tinned Copper
• Part Number: 8133
