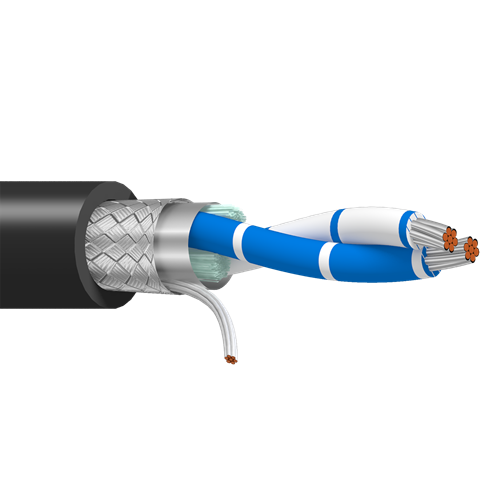

Belden 3105A 22 AWG 1 Pair 7x30 Stranding Tinned Copper 300V Multi-Pair Cable

Description:

RS-485, 120 Ohm, 1 pair 22 AWG (7x30) tinned copper Datalene insulation, Overall Foil + 65% Tinned Copper Braid, PVC jacket, CM, PLTC, SUN RES, and oil-resistant.

Insulation:

• Material: PE - Polyethylene (Foam)
• Nom. Thickness: 0.029 in (0.74 mm)
• Nom. Insulation Diameter: 0.087 in (2.2 mm)

Outer Shield:

• Shield Type: Tape
• Material: Bi-Laminate (Alum+Poly)
• Coverage: 100%
• Drainwire Type: 22 AWG (7x30) TC - Tinned Copper

• Shield Type: Braid
• Material: Tinned Copper (TC)
• Coverage: 65%

Outer Jacket:

• Material: PVC - Polyvinyl Chloride
• Nom. Thickness: 0.047 in (1.2 mm)
• Nom. Diameter: 0.294 in (7.47 mm)
• Overall Cable Diameter (Nominal): 0.294 in (7.47 mm)
• Outer Jacket1 Table Notes: Jacket OD +/- 0.006

Standards:

• Voltage Rating: 300 V (CM, PLTC)
• Operating Temperature: -20°C to +60°C
• Nom. Characteristic Impedance: 120 Ohms

Applications:

• harsh environment, IIoT, factory or process automation, video, audio, data communication, etc.

Specifications:

• Size (AWG): 22
• No. of Pair: 1
• Stranding: 7x30
• Conductor Material: TC - Tinned Copper
• Part Number: 3105A
